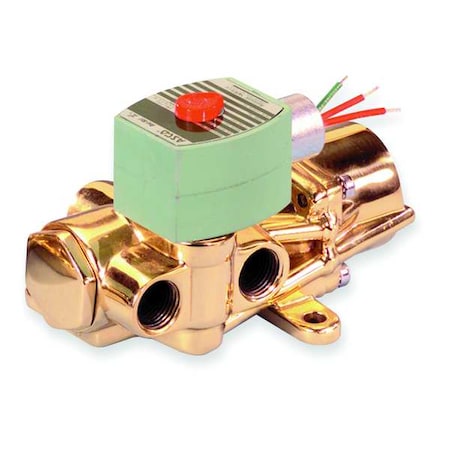

Asco 8344G072 - Solenoid Valve, 4-Way, 2-Position, Universal, 3/8 in Pipe Size, 120 V AC, NAMUR Mount, Direct Acting

The ASCO 8344G072 is a direct acting, 4-way/2-position solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. It features a brass body and NBR seals, with inlet and outlet connections both utilizing NPTF threading. This valve operates at 120V AC. The coil is included and rated with Class F insulation and a power consumption of 10.1 watts. It is configured with a default starting position and can be mounted either horizontally or vertically.

Key Features:

• - Valve Design: 4-Way/2-Position with 2 positions
• - Body Material: Brass
• - Seal Material: NBR
• - Operation Type: Direct Acting
• - Nominal Pipe Size: 3/8 in with a 3/8 in orifice diameter
• - Connection Types: Inlet and Outlet both NPTF threaded
• - Coil: Included; 120V AC, 60 Hz frequency, Class F insulation, 10.1 W power consumption
• - Electrical Connections: 1/2 in conduit with 18 in leads
• - Maximum Fluid Temperature: 180°F
• - Operating Pressure Differential: Minimum 10 psi, Maximum 150 psi for air/inert gas; Maximum 125 psi for light oil and water
• - Dimensions: Overall Length 6 in, Width 3-3/16 in, Height 4 in
• - Coil Enclosure: Watertight, without junction box
• - Mounting Orientation: Horizontal or Vertical
• - IP Rating: 66
• - Valve Type: NAMUR Mount
