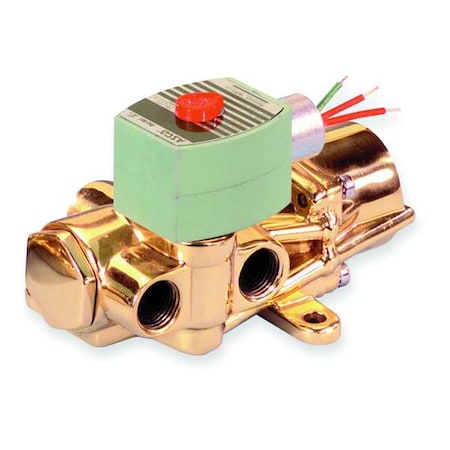

Asco 8344G074MO - Solenoid Valve, 4-Way, 2-Position, 1/2 in Pipe Size, 120 V AC, NAMUR Mount, Direct Acting, Brass

The ASCO 8344G074MO is a 4-way, 2-position direct acting solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. It features a brass body with NBR seals and is designed for controlling the flow of air, inert gases, light oil, and water. The valve supports horizontal or vertical mounting orientations and includes the coil and sealing components needed for operation. Coil enclosure is sealed to prevent water ingress, rated with Class F insulation, and designed to operate at 120V AC, 60 Hz.

Key Features:

• - Valve Design: 4-Way/2-Position with NAMUR mount type
• - Body Material: Brass construction
• - Seal Material: NBR (Buna-N)
• - Orifice Diameter: 3/8 in
• - Nominal Pipe Size: 1/2 in with NPT inlet and outlet connection type (NPTF threads)
• - Flow Coefficient (Cv): 1.4
• - Operating Pressure Differential: Minimum 10 psi and maximum 150 psi for air/inert gas; minimum 10 psi and maximum 125 psi for light oil and water
• - Maximum Fluid Temperature: 180°F
• - Electrical Connections: 1/2 in conduit with 18 in leads
• - Coil Wattage: 10.1 W
• - IP66-rated enclosure suitable for indoor and outdoor use
• - Overall Dimensions: 6-1/8 in length, 5 in height, and 3-3/16 in width
• - Includes: Coil and seals
