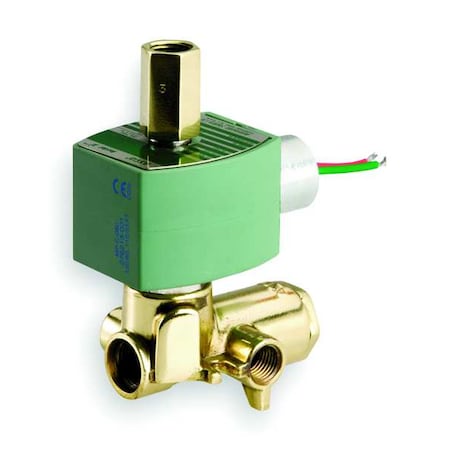

Asco 8345G001MO - Solenoid Valve, 4-Way, 2-Position, 1/4 in Pipe Size, 120 V AC, NAMUR Mount, Pilot Operated, Brass
Asco 8345G001MO - Solenoid Valve, 4-Way, 2-Position, 1/4 in Pipe Size, 120 V AC, NAMUR Mount, Pilot Operated, Brass
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The ASCO 8345G001MO solenoid valve is a pilot-operated, 4-way/2-position valve designed for controlling flow paths in pneumatic or hydraulic systems. It features a brass body with an orifice diameter of 1/16 inch and is compatible with air, inert gases, light oil, and water at temperatures up to 180°F. This valve includes a coil and sealing components, with electrical connections via 1/2 inch conduit and 18-inch leads. It supports horizontal or vertical mounting orientations and features an IP66-rated enclosure suitable for indoor, outdoor, and hazardous locations.
Key Features:
- - Valve Design: 4-Way/2-Position with NAMUR mount configuration
- - Body Material: Brass construction
- - Orifice Diameter: 1/16 inch
- - Nominal Pipe Size: 1/4 inch with NPT thread type for inlet and outlet (NPTF connection type)
- - Operating Pressure Differential: 10 to 150 psi for air/inert gas, light oil, and water
- - Coil: Includes coil with 10.1 W power consumption, Class F insulation, and 120V AC at 60 Hz voltage rating
- - Electrical Connections: 1/2 inch conduit with 18-inch leads
- - Seal Material: NBR (Buna-N)
- - Environmental Rating: IP66-rated enclosure and NEMA ratings 1, 2, 3, 3S, 4, 4X
- - Mounting Orientation: Horizontal or Vertical
- - Dimensions: Overall length 2-1/16 inches; width 3 inches; height 4-11/16 inches
- - Includes: Coil and sealing components
