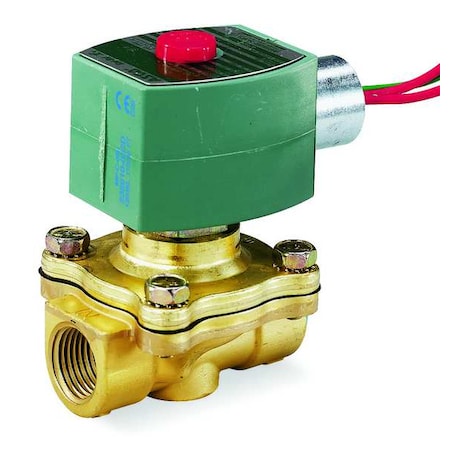

Asco EF8210G009 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 120 V AC, High Flow, Brass

The ASCO EF8210G009 solenoid valve is a pilot-operated, normally closed valve designed for controlling the flow of air, inert gases, light oil, and water. Constructed with a brass body and equipped with an NBR seal. Operating ambient temperature: 14°F to 140°F; maximum fluid temperature: 180°F. The valve features a 3/4-inch nominal pipe size with both inlet and outlet connections using NPTF threads. Response time: approximately 1 second.

Key Features:

• - Valve Design: 2-Way/2-Position with Normally Closed starting configuration
• - Operating Pressure Differential: 5 to 125 psi for air, inert gases, light oil, and water
• - Coil Specifications: Includes coil with Class F insulation, rated for 50 Hz and 60 Hz frequencies, consuming 6.1 W at 120V AC
• - Enclosure and Environmental Ratings: Coil enclosure described as watertight with explosion-proof construction; explicit certification details not provided
• - Electrical Connections: 1/2 inch conduit hub termination
• - Mounting Orientation: Vertical
• - Physical Dimensions: Overall length 2-13/16 in, width 2-5/16 in, height 3-5/8 in
• - Flow Capacity: Cv = 5; orifice diameter = 3/4 inch
• - Standards: UL Listed
