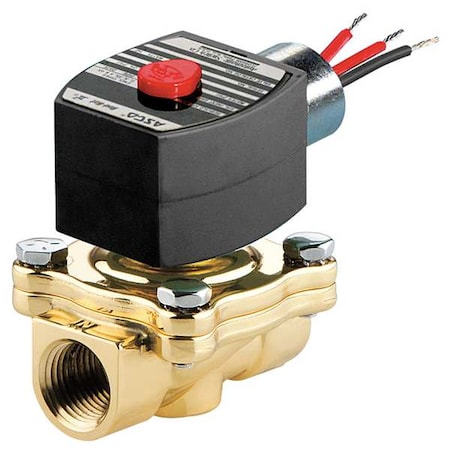

Asco EF8210G014 - Solenoid Valve, 2-Way, 2-Position, Normally Open, 1 in Pipe Size, 120 V AC, High Flow, Brass, NBR

The ASCO EF8210G014 is a pilot-operated, normally open solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. It features a 2-way/2-position valve design with a 1-inch orifice diameter and 1-inch nominal pipe size, providing a flow coefficient (Cv) of 13.This valve is rated for differential pressure: 5 to 150 psi (air, inert gas, water); 5 to 125 psi (light oil). Operating ambient temperature range: 14°F to 140°F. Maximum fluid temperature: 180°F.

Key Features:

• - Valve Type: High Flow, Pilot Operated
• - Valve Configuration: 2-Way/2-Position, Normally Open
• - Body Material: Brass
• - Orifice Diameter: 1 in
• - Nominal Pipe Size: 1 in
• - Differential pressure rating: 5 to 150 psi (air, inert gas, water); 5 to 125 psi (light oil)
• - Flow Coefficient (Cv): 13
• - Operating ambient temperature range: 14°F to 140°F
• - Maximum Fluid Temperature: 180°F
• - Environmental Rating: Indoor, Outdoor
• - Mounting Orientation: Vertical
• - Coil Included: Yes, with Class F insulation
• - Coil Enclosure: Explosion Proof, Watertight
• - Electrical Connections: 1/2 in Conduit Hub
• - Seal Material: NBR
• - Response Time: 1 second
• - Dimensions: 6-7/16 in height, 3-3/4 in length, 3-9/16 in width
• - Thread Type: NPT inlet and outlet (NPTF connection type)
• - Standards: UL Listed
