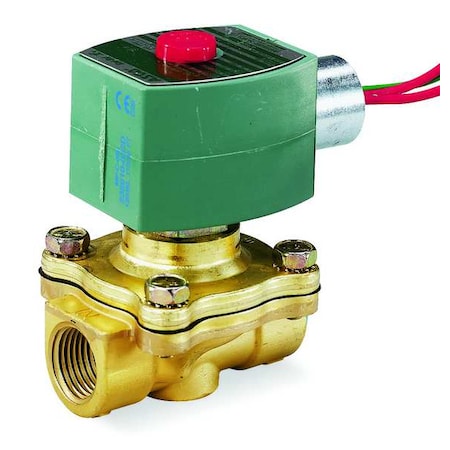

Asco EF8210G034 - Solenoid Valve, 2-Way, 2-Position, Normally Open, 1/2 in Pipe Size, 120 V AC, High Flow, Brass, NBR

The ASCO EF8210G034 is a normally open, pilot-operated solenoid valve that controls flow of air, inert gases, light oil, and water. It is constructed with a brass body and uses an energized coil to move a plunger or poppet, opening or closing the flow path. The valve features a 2-way, 2-position flow path with 1/2 in NPTF inlet/outlet ports. Ambient operating temperature range: 14°F to 140°F; fluid temperature range: up to 180°F.

Key Features:

• - Valve Design: 2-Way/2-Position, Normally Open configuration
• - Valve Type: High Flow, Pilot Operated
• - Media Compatibility: Air, Inert Gas, Light Oil, Water
• - Body Material: Brass
• - Nominal Pipe Size: 1/2 in with NPTF inlet and outlet connections
• - Operating Pressure Differential: Maximum 150 psi (Air/Inert Gas, Water), 125 psi (Light Oil); Minimum 0 psi
• - Electrical: 120V AC, 10.1 W power consumption, Coil Insulation Class F
• - Coil Enclosure: Explosion Proof, Watertight with 1/2 in Conduit Hub electrical connection
• - Environmental Rating: Indoor and Outdoor use
• - Seal Material: NBR
• - Orifice Diameter: 5/8 in
• - Dimensions: Overall Length 2-3/4 in, Width 2-5/16 in, Height 4-3/8 in
• - Response Time: 1 second
• - Includes Coil and Seal components
• - Mounting Orientation: Vertical
• - Standards: UL Listed
