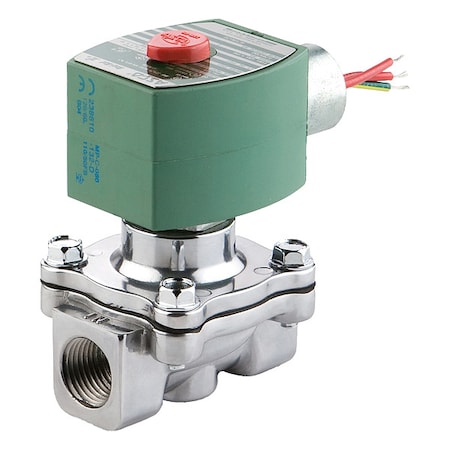

Asco EF8210G089 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1 in Pipe Size, 120 V AC, High Flow, NBR
Asco EF8210G089 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1 in Pipe Size, 120 V AC, High Flow, NBR
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The ASCO EF8210G089 is a pilot-operated solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. It features a normally closed, 2-way/2-position valve design and includes the coil and seal required for operation. Compatible with a nominal pipe size of 1 inch and fitted with NPTF inlet and outlet connections, the valve operates vertically and supports a maximum fluid temperature of 180°F. Its stainless steel body, suitable for indoor and outdoor use, supports electrical operation at 120V AC and 60 Hz.
Key Features:
- - Valve Type and Design: Cv coefficient of 13, 2-Way/2-Position, Normally Closed
- - Operating Pressure Differential: 0 to 150 psi for air/inert gas; 0 to 125 psi for light oil and water
- - Materials: Stainless steel body with NBR seal material
- - Connections: 1-inch nominal pipe size; Inlet and outlet connections are NPTF with NPT thread type
- - Electrical: Includes coil (16.1 W wattage) with 1/2 in conduit hub connection; Coil insulation class F
- - Environmental Rating: Suitable for indoor and outdoor use
- - Dimensions: Overall length 3-3/4 in; width 3-13/16 in; height 5-5/16 in
- - Performance: Cv coefficient of 13; Response time of 1 second
- - Temperature Range: Ambient from 14°F to 140°F; Fluid temperature maximum 180°F
- - Mounting Orientation: Vertical
- - Certifications: UL Listed
