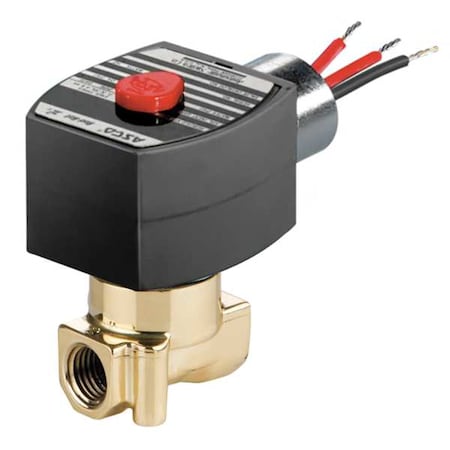

Asco EF8262H014 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 120 V AC, High Flow, Brass

The ASCO EF8262H014 is a 2-way, 2-position direct acting solenoid valve with a normally closed configuration. It features a brass body and NBR seal material, designed to control the flow of air, inert gas, light oil, and water. The valve is supplied with a coil enclosed in a housing with explosion-proof and watertight construction, and operates at 120V AC with a power consumption of 6.1 watts. It is suitable for installation in either horizontal or vertical orientations and is rated for ambient temperatures ranging from -13°F to 131°F, with a maximum fluid temperature of 180°F.

Key Features:

• - Valve Design: 2-Way/2-Position, Normally Closed
• - Operation Type: Direct Acting
• - Body Material: Brass
• - Seal Material: NBR
• - Media Compatibility: Air, Inert Gas, Light Oil, Water
• - Electrical: 120V AC, 60 Hz, 6.1 W power consumption
• - Coil Enclosure: Explosion Proof, Watertight, includes coil
• - Electrical Connection: 1/2 in Conduit with 18 in Leads
• - Mounting Orientation: Horizontal or Vertical
• - Maximum Ambient Temperature: 131°F
• - Minimum Ambient Temperature: -13°F
• - Maximum Fluid Temperature: 180°F
• - Operating Pressure Differential Maximums: 370 psi Air/Inert Gas, 190 psi Light Oil, 330 psi Water
• - Minimum Operating Pressure Differential: 0 psi for Air/Inert Gas, Light Oil, and Water
• - Orifice Diameter: 3/32 in
• - Nominal Pipe Size: 1/8 in
• - Connection Type: NPTF inlet and outlet
• - Dimensions (H × L × W): 2-27/32 in × 1-3/16 in × 1-11/16 in
• - Response Time: 1 sec
• - Certifications: CE, CSA, FM, UL Listed
