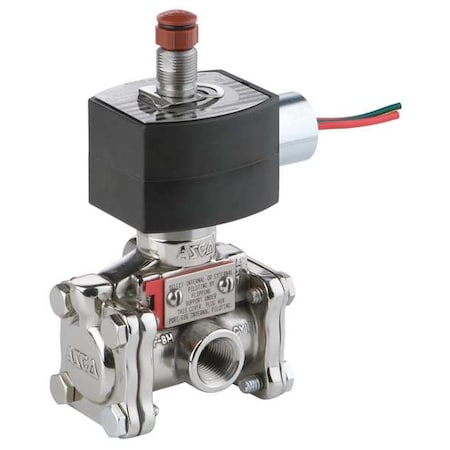

Asco EF8316H301 - Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 24 V DC, Quick Closing, Brass

The ASCO EF8316H301 is a 3-way, 2-position direct acting solenoid valve designed to control the flow of air, inert gases, and liquids. It features a brass body and is equipped with a coil and seals. The valve operates in a normally closed configuration; no time-to-close specification provided. It supports a nominal pipe size of 1/4 inch with NPTF inlet and outlet connections, intended for industrial fluid control applications with 1/4 in nominal pipe size, NPTF inlet/outlet, 0–130 psi differential, and maximum fluid temperature 149°F.

Key Features:

• - Valve Design: 3-Way/2-Position with Normally Closed starting configuration
• - Operation: Direct Acting with Quick Closing characteristic
• - Body Material: Brass construction
• - Orifice Diameter: 5/16 in
• - Nominal Pipe Size: 1/4 in; Inlet and Outlet Connection Types: NPTF
• - Operating Pressure Differential: 0 to 130 psi for Air/Inert Gas
• - Fluid Temperature Maximum: 149°F
• - Media Compatibility: Air, Inert Gas, Liquids
• - Coil: Included with Explosion Proof, Watertight enclosure and Class F insulation
• - Electrical: 24V DC voltage, 0.55 W wattage, 1/2 in conduit with 18 in leads connection
• - Seal Material: NBR (Buna-N)
• - Environmental Ratings: Indoor, Outdoor, Hazardous locations
• - Overall Dimensions: Length 4-1/16 in, Width 2-1/16 in, Height 6 in
• - Standards: UL Listed
• - NEMA Enclosure Ratings: 3, 3S, 4, 4X, 6, 6P, 7, 9
• - Includes Seal: Yes
