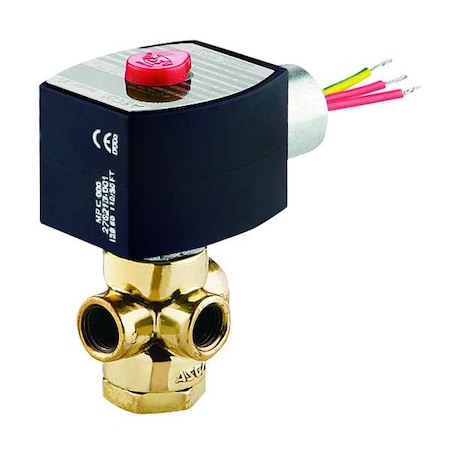

Asco EF8320G176 - Solenoid Valve, 3-Way, 2-Position, Configurable, 1/4 in Pipe Size, 120 V AC, Direct Mount, Brass
Asco EF8320G176 - Solenoid Valve, 3-Way, 2-Position, Configurable, 1/4 in Pipe Size, 120 V AC, Direct Mount, Brass
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The ASCO EF8320G176 is a 3-way, 2-position direct-acting solenoid valve with media compatibility: air, inert gases, light oil, and water within specified operating limits (0–50 psi differential; maximum fluid temperature 200°F). Constructed with a brass body and NBR seals, this valve is configured with a 1/4 inch nominal pipe size and uses NPTF threaded inlet and outlet connections. Starting position is configurable during installation and can be mounted horizontally or vertically. Coil enclosure rated as explosion-proof and watertight with Class F insulation and features electrical connections via 1/2 inch conduit with 18-inch leads. It is rated for indoor and outdoor environments and operates on 120V AC power with a wattage of 17.1 W.
Key Features:
- - Valve Type: Direct Mount, direct-acting operation
- - Valve Design: 3-Way/2-Position, with 2 discrete positions
- - Body Material: Brass
- - Seal Material: NBR
- - Nominal Pipe Size: 1/4 in
- - Orifice Diameter: 1/8 in
- - Connection Types: NPTF inlet and outlet thread
- - Center Line Pipe Size: 1-13/16 in
- - Operating Pressure Differential: 0 to 50 psi for air/inert gas, light oil, and water
- - Maximum Fluid Temperature: 200°F
- - Electrical: 120V AC, 17.1 W coil power, 50 Hz and 60 Hz frequency support
- - Coil Enclosure: Coil enclosure rated as explosion-proof and watertight with Class F insulation
- - Environmental Rating: Indoor and Outdoor use
- - Mounting Orientation: Horizontal or Vertical
- - Includes: Coil and sealing components
- - Overall Dimensions: Height 3-3/4 in, Length 1-11/16 in, Width 1-7/16 in
