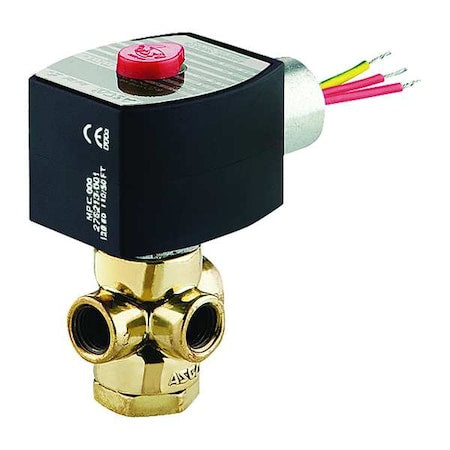

Asco EF8320G182 - Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120 V AC, Direct Mount, Brass
Asco EF8320G182 - Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120 V AC, Direct Mount, Brass
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The ASCO EF8320G182 is a direct-acting, normally closed solenoid valve designed to control the flow of air, inert gases, light oil, and water. It features a three-way, two-position valve design housed in a brass body, allowing for flow routing through distinct ports. It supports horizontal or vertical mounting orientations and includes the solenoid coil and seal for operation. The valve operates at 120V AC with a coil wattage of 17.1 W and has an Ex-certified coil enclosure compliant with ATEX/IECEx standards, rated for indoor and outdoor use.
Key Features:
- - Valve Type: Direct Mount, Direct Acting, Normally Closed
- - Valve Configuration: 3-Way/2-Position with 2-Position operation
- - Materials: Brass body with NBR seal material
- - Connections: Inlet and outlet ports with NPTF threads; nominal pipe size 1/4 in
- - Dimensions: Overall height 3-3/4 in, length 1-11/16 in, width 1-7/16 in, center line pipe size 1-13/16 in
- - Flow Performance: Coefficient of Volume (Cv) 0.09; orifice diameter 1/16 in
- - Pressure Ratings: Maximum operating pressure differentials of 210 psi for air/inert gas and 225 psi for light oil and water; minimum differential pressure 0 psi
- - Electrical: 120V AC voltage, 17.1 W coil wattage, coil insulation class F, frequency 50 Hz and 60 Hz
- - Installation: Horizontal or vertical mounting orientation allowed
- - Environmental Rating: Suitable for indoor and outdoor use
- - Electrical Connections: 1/2 in conduit with 18 in leads
- - Standards: Certified to ATEX, CSA, IECEx, and UL Listed
