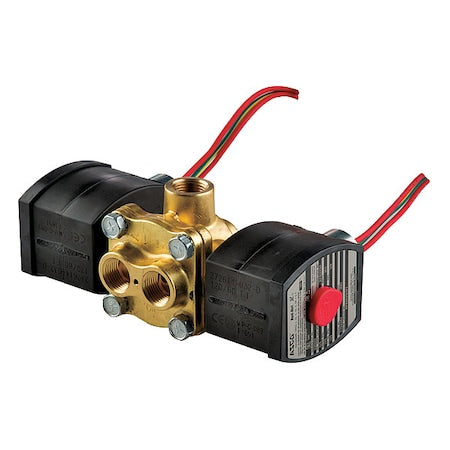

Asco EF8342G022 - Solenoid Valve, 4-Way, 2-Position, Universal, 3/8 in Pipe Size, 120 V AC, NAMUR Mount, Direct Acting

The ASCO EF8342G022 is a 4-way, 2-position direct acting solenoid valve designed for controlling the flow of fluids such as air, inert gases, light oil, and water. It features a brass valve body with FKM seals and includes a coil rated for 120V AC operation at 60 Hz, enclosed in an explosion proof and watertight housing. The valve can be installed horizontally or vertically and is rated for both indoor and outdoor environments. It supports a maximum ambient temperature of 125°F and a fluid temperature up to 160°F.

Key Features:

• - Valve Design: 4-Way/2-Position configuration with 2 discrete actuator positions
• - Operation Type: Direct Acting
• - Valve Starting Configuration: Universal
• - Valve Type: NAMUR Mount
• - Body Material: Brass
• - Seal Material: FKM
• - Nominal Pipe Size: 3/8 in with NPTF inlet and outlet connections
• - Center Line Pipe Center Size: 2-9/16 in
• - Orifice Diameter: 3/16 in
• - Coefficient of Volume (Cv): 0.7
• - Operating Pressure Differential: 0 to 125 psi for air/inert gas, light oil, and water
• - Electrical: 120V AC voltage, 16.1 W wattage, coil insulation class F
• - Coil Enclosure: Explosion Proof, Watertight
• - Electrical Connections: 1/2 in conduit with 18 in leads
• - Environmental Rating: Indoor, Outdoor
• - Ambient Temperature Range: 32°F to 125°F
• - Fluid Temperature Maximum: 160°F
• - Includes Coil: Yes
• - Includes Seal: Yes
• - Overall Dimensions: 6-1/4 in height, 2-9/16 in length, 2-11/16 in width
• - Standards: CSA, UL Listed
• - Mounting Orientation: Horizontal or Vertical
