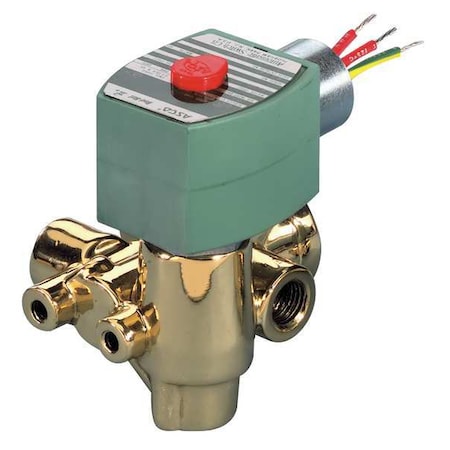

Asco EFHC8321G001125/DCDD - Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 125 V DC, Quick Exhaust, Brass

The ASCO EFHC8321G001125/DCDD is a pilot-operated, normally closed solenoid valve constructed with a brass body and designed for controlling the flow of air, inert gases, light oil, and water. It features a 3-way/2-position valve design with a quick exhaust valve type, allowing automated and remote control of fluid or gas passage. The valve can be mounted in horizontal or vertical orientations and operates with a 125V DC power supply. Its coil is explosion-proof and watertight with Class H insulation, Coil Enclosure: Explosion-Proof; Watertight; Insulation Class: H; Environmental Rating: Indoor/Outdoor, and includes coil and seal components.

Key Features:

• - Valve Design: 3-Way/2-Position, Normally Closed, Quick Exhaust
• - Actuator Type: Single Air Pilot, Pilot Operated
• - Body Material: Brass
• - Media Compatibility: Air, Inert Gases, Light Oil, Water
• - Maximum Fluid Temperature: 120°F
• - Operating Pressure Differential: 10 psi minimum (Light Oil); 200 psi maximum (Air/Inert Gas, Light Oil, Water)
• - Orifice Diameter: 9/32 in
• - Nominal Pipe Size: 1/4 in
• - Connection Types: Inlet and Outlet NPTF
• - Electrical: 125V DC, 20.6 W wattage; Electrical Connections: 1/2 in Conduit with 18 in Leads
• - Coil Enclosure: Explosion-Proof, Watertight; Coil Insulation Class: H
• - Environmental Rating: Indoor/Outdoor
• - Mounting Orientation: Horizontal or Vertical
• - Dimensions: Overall Length 3-1/8 in; Width 2-1/2 in; Height 3-15/16 in
• - Seal Material: NBR
• - Includes: Coil and seals
