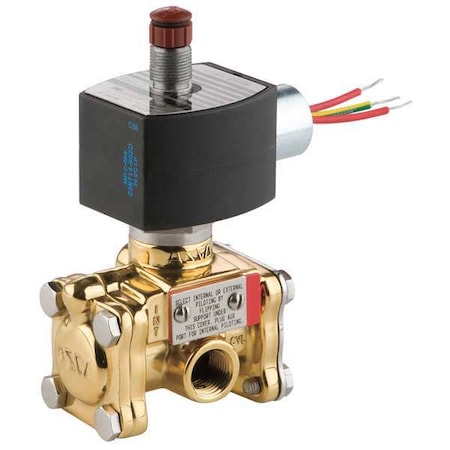

Asco EV8316G384V24/DCDD - Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 24 V DC, High Flow, FKM

The ASCO EV8316G384V24/DCDD is a 3-way, 2-position, normally closed solenoid valve designed for controlling the flow of air, inert gases, and liquids. It operates with a direct-acting mechanism and includes an coil for actuation. The valve features a 1/2 inch nominal pipe size and 5/8 inch orifice diameter, Cv: 4. Its body material: 316 stainless steel; Seal material: FKM. Environmental Rating: Hazardous, Indoor, Outdoor. It operates at a maximum fluid temperature of 130°F.

Key Features:

• - Valve Design: 3-Way/2-Position with 2-Position actuation
• - Operation Type: Direct Acting
• - Valve Starting Configuration: Normally Closed
• - Body Material: 316 Stainless Steel
• - Seal Material: FKM
• - Nominal Pipe Size: 1/2 in
• - Orifice Diameter: 5/8 in
• - Coefficient of Volume (Cv): 4
• - Operating Voltage: 24V DC
• - Wattage: 0.55 W
• - Coil Enclosure: Explosion Proof, Watertight
• - Coil Insulation Class: F
• - Electrical Connections: 1/2 in Conduit with 18 in Leads
• - Inlet/Outlet Connection Type: NPTF
• - Environmental Rating: Hazardous, Indoor, Outdoor
• - Maximum Fluid Temperature: 130°F
• - Operating Pressure Differential Air/Inert Gas: 0 to 130 psi
• - Includes Coil and Seal: Yes
• - Overall Dimensions (HxLxW): 6 in x 2-11/16 in x 3-1/2 in
• - Center Line Pipe Center Size: 4-7/16 in
• - Standards: UL Listed
