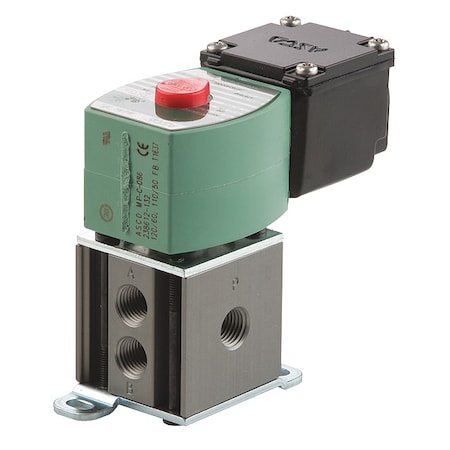

Asco JSP8340G001 - Solenoid Valve, 4-Way, 2-Position, 1/4 in Pipe Size, 120 V AC, Inline Single, Aluminum, PE

The ASCO JSP8340G001 is a 4-way, 2-position solenoid valve designed to control the flow of air and inert gases by using an coil to actuate the valve mechanism. Constructed with an aluminum body and equipped with a PE seal, it operates with a nominal pipe size of 1/4 inch and a valve orifice diameter of 1/16 inch. This valve offers a coefficient of volume (Cv) of 0.1 and can handle a maximum fluid temperature of 130°F. Its electrical coil includes an IP66-rated junction box enclosure, operates at 120V AC with a wattage of 17.1 W, and has a thermal insulation class F. The product provides IP66-rated environmental protection against dust and water ingress.

Key Features:

• - Valve Design: 4-Way/2-Position
• - Body Material: Aluminum
• - Seal Material: PE (polyethylene)
• - Nominal Pipe Size: 1/4 in
• - Orifice Diameter: 1/16 in
• - Coefficient of Volume (Cv): 0.1
• - Maximum Fluid Temperature: 130°F
• - Operating Pressure Differential: 0 to 150 psi for Air/Inert Gas; 0 to 145 psi for Light Oil
• - Electrical Connections: Spade Terminal
• - Coil Enclosure: IP66-rated junction box enclosure
• - Coil Insulation Class: F
• - Voltage: 120V AC
• - Wattage: 17.1 W
• - Environmental Rating: Indoor, Outdoor
• - IP Rating: 66
• - Includes: Coil and Seal
• - Standards: UL Listed
• - Overall Dimensions: Length 1-15/16 in, Width 1-15/16 in, Height 4-1/8 in
• - Valve Type: Inline Single
