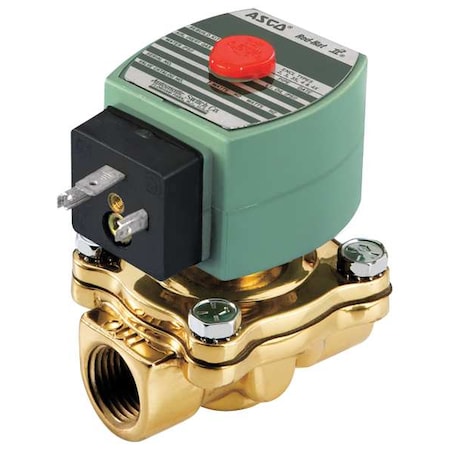

Asco SC8210G001 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 120 V AC, High Flow, Brass

The ASCO SC8210G001 is a pilot-operated, 2-way/2-position solenoid valve designed to control the flow of air, inert gas, light oil, and water. It features a normally closed valve starting configuration and a high flow valve type with a 5/8 inch orifice diameter. Rated for 120V AC, 50/60 Hz input, this valve operates on standard mains voltage. It supports vertical mounting orientation and is rated for indoor and outdoor environments. The valve comes complete with coil and sealing components included.

Key Features:

• - Body Material: Brass
• - Valve Design: 2-Way/2-Position
• - Valve Starting Configuration: Normally Closed
• - Valve Type: High Flow
• - Valve Ways: 2-Way
• - Operating Pressure Differential Maximums: 200 psi Air/Inert Gas, 135 psi Light Oil, 150 psi Water
• - Operating Pressure Differential Minimums: 5 psi Air/Inert Gas, Light Oil, Water
• - Ambient Temperature Range: 14°F to 140°F
• - Fluid Temperature Maximum: 180°F
• - Coil Enclosure: watertight; junction box not included
• - Coil Insulation Class: F
• - Electrical Connections: 1/2 in Conduit Hub
• - Inlet/Outlet Connection Type: NPTF with NPT thread type
• - Seal Material: NBR
• - Response Time: 1 second
• - Nominal Pipe Size: 3/8 in
• - Dimensions: Overall Height 3-3/8 in, Length 2-3/4 in, Width 2-5/16 in
• - Environmental Rating: Indoor, Outdoor
• - IP Rating: 66
• - NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X
• - Includes: Coil and Seal
• - Application Areas: Air Compressors, Car Wash, Industrial Water Control, Laundry Equipment, Pumps
• - Wattage: 6.1 W
