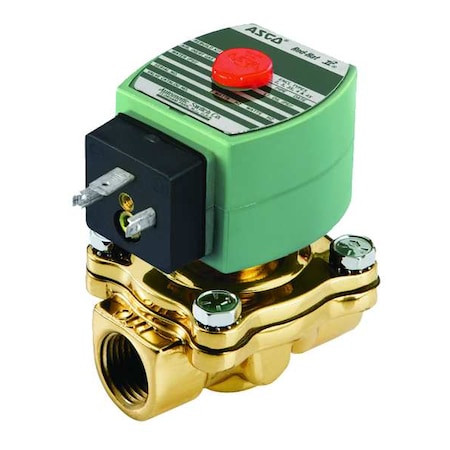

Asco SC8210G002 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120 V AC, High Flow, Brass

The ASCO SC8210G002 is a pilot-operated, normally closed solenoid valve engineered for automated control of fluid and gas flow. Constructed with a brass body and NBR seals, it accommodates air, inert gases, light oil, and water with a maximum fluid temperature of 180°F. This valve is designed with a 5/8 inch orifice and a nominal pipe size of 1/2 inch, featuring NPTF inlet and outlet connections. Its 2-way/2-position configuration supports flow control by opening or closing the path via an energized solenoid coil, which is included. Mounting is recommended in a vertical orientation.

Key Features:

• - Operating ambient temperature range: 14°F to 140°F
• - Maximum Operating Pressure Differential: 200 psi for Air/Inert Gas, 135 psi for Light Oil, 150 psi for Water
• - Minimum Operating Pressure Differential: 5 psi for Air/Inert Gas, Light Oil, and Water
• - Coil Insulation Class: F; Wattage: 6.1 W; Voltage: 120V AC; Frequency: 50 Hz, 60 Hz
• - Coil Enclosure is IP66-rated watertight; no external junction box required; Electrical Connections: 1/2 in Conduit Hub
• - Enclosure rated for indoor and outdoor use (IP66)
• - Valve Design: 2-Way/2-Position; Valve Type: High Flow; Valve Starting Configuration: Normally Closed
• - Response time: 1 second (typical per specification)
• - Overall Dimensions: Height 3-5/16 in, Length 3 in, Width 2-5/16 in; Center Line Pipe Size: 2-13/16 in
• - Includes Coil and Seal; Seal Material: NBR
