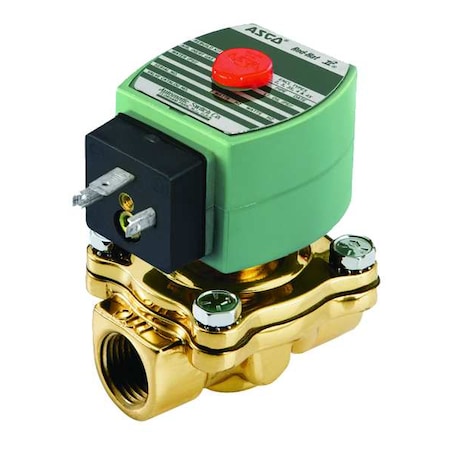

Asco SC8210G034 - Solenoid Valve, 2-Way, 2-Position, Normally Open, 1/2 in Pipe Size, 110/120 V AC, High Flow, Brass
Asco SC8210G034 - Solenoid Valve, 2-Way, 2-Position, Normally Open, 1/2 in Pipe Size, 110/120 V AC, High Flow, Brass
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The ASCO SC8210G034 is a pilot-operated, 2-way/2-position solenoid valve designed for controlling commercial and industrial gas burners. It utilizes an energized coil to move a plunger, opening or closing the flow path to regulate the passage of fuel oil and gas. The valve has a normally open configuration. Environmental Rating: Indoor and Outdoor use. It includes the coil and sealing components needed for installation. The valve has a brass body and features NPTF inlet and outlet connections sized for 1/2 inch nominal pipe size, with vertical mounting orientation supported.
Key Features:
- - Valve Type: Pilot-operated
- - Valve Design: 2-Way/2-Position, Normally Open
- - Body Material: Brass
- - Media Compatibility: Fuel Oil, Gas
- - Nominal Pipe Size: 1/2 in with NPT thread type (inlet and outlet NPTF)
- - Orifice Diameter: 5/8 in
- - Operating Voltage: 110/120V AC at 50 Hz and 60 Hz
- - Wattage: 10.1 W
- - Operating Pressure Differential Maximums: 150 psi for air/inert gas and water; 125 psi for light oil
- - Operating Pressure Differential Minimums: 0 psi across air/inert gas, light oil, and water
- - Fluid Temperature Maximum: 180°F
- - Ambient Temperature Range: 14°F minimum to 140°F maximum
- - Coil Insulation Class: F
- - Coil Enclosure: Without Junction Box; electrical connections via 1/2 in conduit hub
- - Environmental Rating: Indoor and Outdoor use
- - Includes: Coil and seal components (NBR seal material)
- - Physical Dimensions: Overall length 3-25/32 in, height 4-5/32 in, width 2-5/16 in
- - Response Time: 1 second
- - Gas Capacity/BtuH Rating: 188,000 BtuH
- - Standards: CSA and UL for General Purpose
