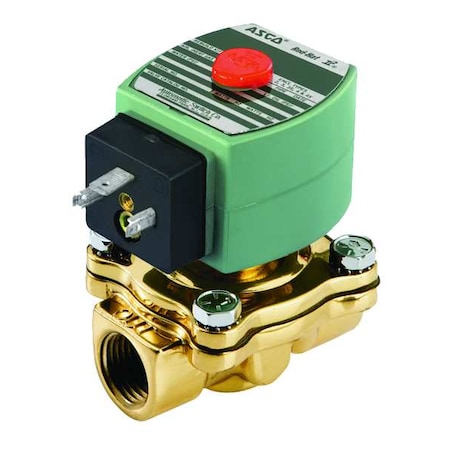

The ASCO SC8210G093 is a pilot-operated, normally closed solenoid valve designed to control the flow of air, inert gases, and water. Constructed with a brass valve body, it operates as a 2-Way/2-Position valve with 5/8 in orifice diameter. This valve is suitable for use with air, inert gas, and water systems within a 0 to 150 psi differential. It is engineered for vertical mounting orientation and includes the coil and seals necessary for installation.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Closed
- - Valve Type: High Flow
- - Orifice Diameter: 5/8 in
- - Valve Body Material: Brass
- - Operation Type: Pilot Operated
- - Nominal Pipe Size: 3/8 in with NPT inlet and outlet connections (NPTF thread type)
- - Electrical: 120V AC, 10.1 W coil wattage, coil insulation Class F, 50 Hz and 60 Hz frequency
- - Coil enclosure: IP66-rated; no junction box included
- - Electrical Connections: 1/2 in Conduit Hub
- - Environmental Rating: Suitable for Indoor and Outdoor use, IP66 rated
- - Operating Pressure Differential: 0 to 150 psi for air, inert gas, and water
- - Ambient Temperature Range: 14°F to 140°F
- - Maximum Fluid Temperature: 180°F
- - Seal Material: NBR (Buna-N)
- - Dimensions: 5-1/8 in height, 3-3/4 in length, 3-1/4 in width
- - Response Time: 1 second
- - Standards: UL Listed
