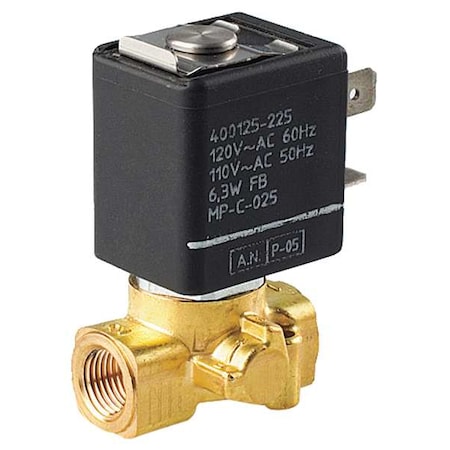

Asco SC8256B045V - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 120/60 V AC, Compact, Brass
Asco SC8256B045V - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 120/60 V AC, Compact, Brass
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The ASCO - SC8256B045V is a direct-acting solenoid valve with physical dimensions: Length 63/64 inch; Width 1 inch; Height 2-1/4 inches, designed for controlling the flow of air, inert gas, light oil, and water. It features a normally closed, 2-way/2-position configuration, enabling automated regulation of fluid or gas passage through its 1/8 inch orifice. Mounting orientation: horizontal or vertical; intended for indoor use. The valve includes the coil and seal necessary for operation.
Key Features:
- - Body Material: Brass construction
- - Orifice Diameter: 1/8 inch
- - Nominal Pipe Size: 1/8 inch with NPT thread type for inlet and outlet (NPTF connection)
- - Maximum Fluid Temperature: 180°F
- - Operating Pressure Differential Maximum: 135 psi for air/inert gas, 80 psi for light oil, 126 psi for water; Minimum differential pressure: 0 psi
- - Electrical rating: 120 V AC, 60 Hz; coil insulation: Class F; power consumption: 6.3 W
- - Electrical Connection: DIN style
- - Response Time: 20 milliseconds
- - Valve Design: 2-Way/2-Position, Normally Closed
- - Environmental and NEMA Ratings: Indoor use, IP65 rated, NEMA 4X enclosure
- - Seal Material: FKM
- - Physical dimensions: Length 63/64 inch; Width 1 inch; Height 2-1/4 inches
