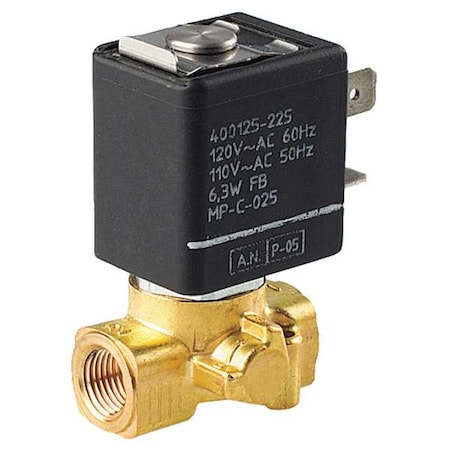

Asco SC8256B045V - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 240 V AC, Compact, Brass, FKM

The ASCO SC8256B045V is a compact, direct-acting solenoid valve designed for controlling the passage of fluids such as air, inert gas, light oil, and water. It features a normally closed valve configuration with two flow paths, and it can be mounted in either horizontal or vertical orientations. The valve is constructed with a brass body and seals made of FKM material, rated for operation up to 180°F. It is equipped with a watertight coil enclosure and operates at 240V AC with a 6.3-watt coil, including the coil and sealing components in the product package.

Key Features:

• - Valve Design: 2-Way/2-Position, Normally Closed
• - Body Material: Brass; Seal Material: FKM
• - Nominal Pipe Size: 1/8 in; Orifice Diameter: 1/8 in; Center Line Pipe Center Size: 1-13/16 in
• - Operating Pressure Differential: Maximum 135 psi (Air/Inert Gas), 80 psi (Light Oil), 126 psi (Water); Minimum 0 psi (Air/Inert Gas, Light Oil, Water)
• - Media Compatibility: Air, Inert Gas, Light Oil, Water
• - Electrical: 240V AC, 50 Hz and 60 Hz frequency, 6.3 W coil wattage, DIN electrical connections
• - Coil enclosure IP66-rated, Without Junction Box; Coil Insulation Class: F
• - Environmental Rating: Indoor; NEMA Enclosure Rating: 4, 4X; IP Rating: 66
• - Mounting Orientation: Horizontal or Vertical
• - Response Time: 20 msec
• - Includes: Solenoid coil and sealing components
