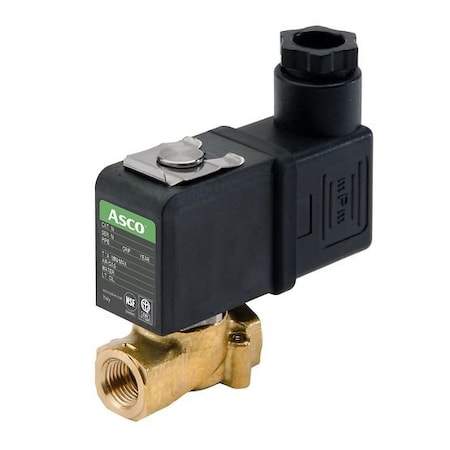

Asco SC8256B046V - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 120 V AC, Compact, FKM
Asco SC8256B046V - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 120 V AC, Compact, FKM
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
Valve type: direct-acting; configuration: 2-way/2-position; media compatibility: Air, Inert Gas, Light Oil, Water. Media compatibility: Air, Inert Gas, Light Oil, Water. The valve includes a coil and seal, supports both horizontal and vertical mounting orientations; environmental rating: Indoor. The valve body is constructed of stainless steel, and it operates at a nominal pipe size of 1/8 inch with an orifice diameter of 1/8 inch, providing a Cv of 0.19 for flow control. Electrical specifications include 120V AC at 60 Hz with a coil wattage of 6.3 W. Response time: 20 ms. The valve has a maximum fluid temperature rating of 180°F.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Closed
- - Operation Type: Direct Acting
- - Body Material: Stainless steel
- - Media Compatibility: Air, Inert Gas, Light Oil, Water
- - Connection Type: Inlet and Outlet - NPTF, Thread Type - NPT
- - Nominal Pipe Size: 1/8 in; Orifice Diameter: 1/8 in; Center Line Pipe Center Size: 1-13/16 in
- - Operating Pressure Differential Maximum: 135 psi Air/Inert Gas, 80 psi Light Oil, 126 psi Water; Minimum: 0 psi
- - Coil enclosure: Watertight; junction box: not included; Coil Insulation Class: F; Electrical Connections: DIN
- - Mounting Orientation: Horizontal or Vertical
- - Environmental rating: Indoor; NEMA Enclosure Rating: 4, 4X; IP Rating: 66
- - Includes Coil and Seal
- - Response time: 20 ms
- - Seal Material: FKM
- - Overall Dimensions: Length 1-13/16 in, Width 1 in, Height 2 in
- - Wattage: 6.3 W; Voltage: 120V AC; Frequency: 60 Hz
- - Certifications: CSA, NSF, UL Listed
