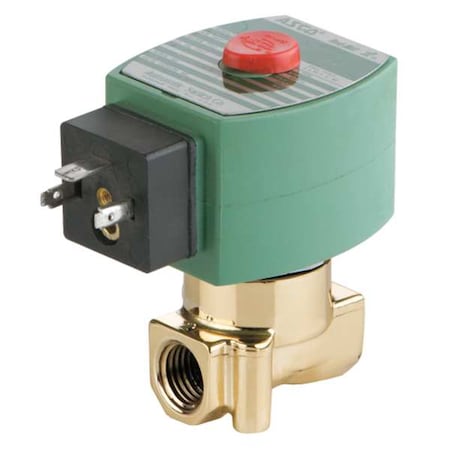

Asco SD8262H212 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120 V AC, High Flow, Brass
Asco SD8262H212 - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120 V AC, High Flow, Brass
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The ASCO SD8262H212 Solenoid Valve is a direct-acting, 2-way, 2-position valve designed to control the flow of air, inert gas, light oil, and water. It features a normally closed starting configuration and includes the solenoid coil and sealing components needed for operation. The valve body is made of brass and utilizes NBR seals. It supports both horizontal and vertical mounting orientations and operates with a nominal voltage of 120V AC at frequencies of 50 Hz and 60 Hz. This valve is rated for ambient temperatures ranging from 14°F to 140°F and can handle fluid temperatures up to 180°F. It is intended for use with air, inert gas, light oil, and water in industrial systems, within the specified temperature and pressure ranges.
Key Features:
- - Valve Design: 2-Way/2-Position with Normally Closed configuration
- - Operation Type: Direct Acting
- - Body Material: Brass
- - Seal Material: NBR (Buna-N)
- - Included Components: Coil and Seal
- - Electrical Connections: DIN
- - Coil enclosure: Watertight; Junction box not included
- - Coil Insulation Class: F
- - Voltage and Frequency: 120V AC, 50 Hz and 60 Hz
- - Maximum Operating Pressure Differential: 90 psi for Air/Inert Gas, Light Oil, and Water
- - Minimum Operating Pressure Differential: 0 psi for Air/Inert Gas, Light Oil, and Water
- - Nominal Pipe Size: 1/4 in; Inlet and Outlet Connection Type: NPTF with NPT Thread Type
- - Orifice Diameter: 9/32 in
- - Dimensions: Overall Height 3-1/8 in, Length 1-9/16 in, Width 1-15/16 in
- - Environmental Rating: Indoor, Outdoor
- - IP Rating: 66
- - Standards: CSA, UL Listed
