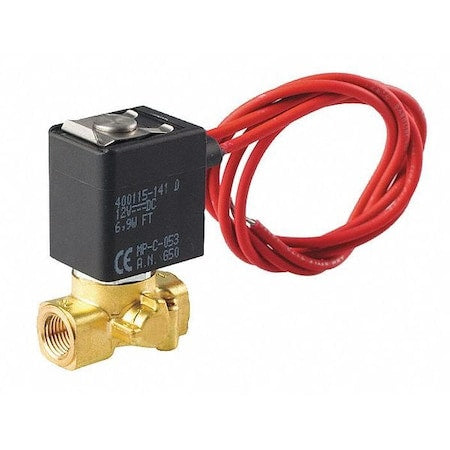

Asco U8256A014V - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 120 V AC, Compact, FKM
Asco U8256A014V - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 120 V AC, Compact, FKM
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The ASCO U8256A014V is a direct-acting, normally closed compact solenoid valve designed to control the flow of air, inert gas, light oil, and water. Constructed with a stainless steel body and FKM seals, it supports both horizontal and vertical mounting orientations. The valve is rated for operation with air, inert gas, light oil, and water; actuation is via an electrical coil with 18-inch leads, with operation limited to the specified maximum differential pressures. It operates at 120V AC and 60 Hz frequency and is rated for indoor environments with NEMA 4 and 4X enclosure protection.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Closed
- - Body Material: Stainless Steel
- - Seal Material: FKM
- - Nominal Pipe Size: 1/8 in with NPTF inlet and outlet connections
- - Orifice Diameter: 19/32 in; Coefficient of Volume (Cv): 0.08
- - Maximum Operating Pressure Differential: 400 psi (Air/Inert Gas), 230 psi (Light Oil), 390 psi (Water)
- - Coil Enclosure: Open Frame with Class F insulation
- - Electrical Specifications: 120V AC, 6.3 W power consumption, 18 in Leads
- - Response Time: 20 milliseconds
- - Dimensions: 2 in height, 1-13/16 in length, 1 in width
- - Environmental Rating: Indoor; NEMA Enclosure Rating: 4, 4X; IP Rating: 66
