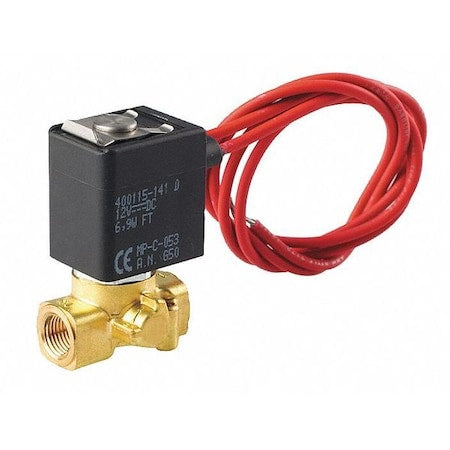

Asco U8256B045V - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 120 V AC, Compact, Brass, FKM
Asco U8256B045V - Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 120 V AC, Compact, Brass, FKM
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The ASCO U8256B045V is a 2-way, 2-position compact solenoid valve constructed with a brass body and an FKM seal. It operates as a normally closed, direct acting valve designed to control the flow of air, inert gases, light oil, and water. The valve is rated for installation in equipment handling air, inert gas, light oil, and water within a differential pressure range of 0 to 63 psi and a maximum fluid temperature of 180°F. It includes the coil required for actuation and is rated for indoor use with an IP66 rating and NEMA 4, 4X enclosure, allowing for both horizontal and vertical mounting orientations.
Key Features:
- - Nominal Pipe Size: 1/8 in with 2 in center line pipe spacing
- - Orifice Diameter: 1/8 in
- - Operating Pressure Differential: 0 to 63 psi for Air, Inert Gas, Light Oil, and Water
- - Maximum Fluid Temperature: 180°F
- - Voltage and Frequency: 120V AC at 60 Hz
- - Wattage: 6.3 W coil power consumption
- - Coil Enclosure: Open Frame with Class F insulation
- - Electrical Connections: 18 in leads
- - Response Time: 20 milliseconds
- - Inlet/Outlet Connection Type: NPTF with NPT thread type
- - Dimensions: Overall length 1-5/8 in; height 2-1/4 in; width 13/16 in
- - Includes Seals and Coil
- - Standards: CSA, NSF, UL Listed
