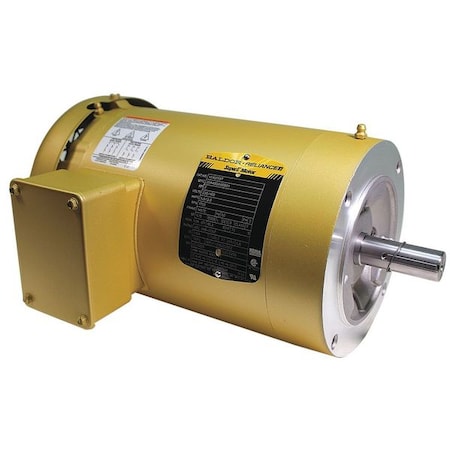

Baldor-Reliance VEM3558T - Three-Phase General Purpose Motor, 2 HP, 145 TC Frame, 208-230/460 V AC Voltage

The BALDOR-RELIANCE - VEM3558T is a 3-phase AC general purpose motor, designed for industrial and commercial applications. This versatile motor converts electrical energy into mechanical energy to operate various types of machinery across different sectors, including manufacturing lines and HVAC systems.

Key Features of the BALDOR-RELIANCE - VEM3558T General Purpose Motor:

• CC Number: The unique identifier assigned by EASA classifies and tracks this motor based on its design, specifications, and performance characteristics.
• Duty Cycle: This motor is designed for a continuous duty cycle, which may be beneficial for certain industrial applications.
• Frame: The 145TC frame houses and supports the internal parts of the motor conforming to standard specifications for compatibility.
• Full Load Amps: Operating at full capacity, this motor will draw a maximum current of 6.8/3.4 A which is crucial for determining power supply requirements.
• Green Certification or Other Recognition: NEMA Premium(R) Rated indicates that it meets certain environmental and energy efficiency standards making it an eco-friendly choice.
• Inverter Rated: Yes - indicates that the motor is compatible with being powered by a variable frequency drive, which could allow for adjustments to speed and torque
• Nominal Efficiency: The rated efficiency of this motor is 86.5%, indicating its potential performance in converting electrical power into mechanical power under specified conditions."
