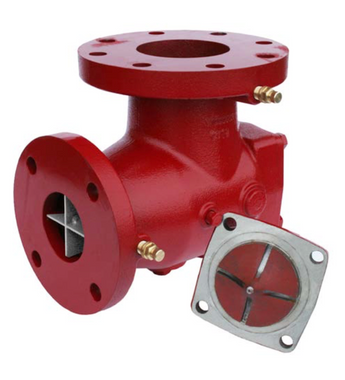

Bell & Gossett 115104 ED-3X Suction Diffuser Plus 4"x3" Flanged
Bell & Gossett 115104 ED-3X Suction Diffuser Plus 4"x3" Flanged
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | 115104 |
| Model Designation | ED-3X |
| Connection Size | 4" x 3" Flanged |
Protect your system's critical mechanical components with the Bell & Gossett 115104 ED-3X Suction Diffuser Plus. This high-efficiency strainer is engineered to ensure laminar flow into the pump suction while simultaneously filtering out sediment, pipe scale, and debris that could compromise system performance. By integrating a flow straightening vane and a primary strainer, the ED-3X optimizes suction conditions, extending the operational lifespan of your pumps.
The unit utilizes a specialized internal configuration to act as a suction piping guide, reducing turbulence and uneven flow profiles that lead to cavitation. The replaceable primary strainer element captures foreign matter, while the fine-mesh start-up sleeve prevents any residual particulates from entering the system during initial commissioning, ensuring that the pump impeller remains protected and balanced throughout its service life.
Key System Performance Baselines:
- Reduced Turbulence: Internal guide vanes promote uniform flow for optimal pump efficiency.
- Dual-Stage Filtration: Combines a standard strainer with a start-up sleeve for maximum protection.
- Maintenance Efficiency: Flanged design allows for simplified inspection and cleaning of the internal element.
⚠️ Application Profile: Ideal for commercial hydronic heating and cooling systems, high-rise building pump stations, and industrial fluid transfer loops requiring long-term pump protection and consistent flow hydraulics.
