Bell & Gossett 115128 JH-3X Suction Diffuser Plus 10" x 8" Flanged
Bell & Gossett 115128 JH-3X Suction Diffuser Plus 10" x 8" Flanged
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number | 115128 |
| Model Designation | JH-3X |
| Connection Size | 10" x 8" Flanged |

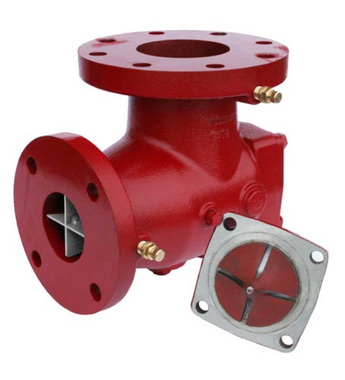

Protect your hydronic pump investment with the Bell & Gossett 115128 JH-3X Suction Diffuser Plus, a critical component designed to optimize suction conditions for commercial pumps. This robust 10" x 8" flanged unit serves as a high-capacity strainer and flow straightener, ensuring uniform velocity profiles at the pump inlet to prevent cavitation and reduce turbulence.
The internal mechanism features a high-strength permanent strainer combined with a disposable start-up fine mesh to capture debris during initial system flushing. By streamlining the flow path, it minimizes pressure drop and ensures long-term operational reliability while extending the service life of your pump components.
Key System Performance Baselines:
- Flow Optimization: Maintains consistent fluid velocity to maximize pump hydraulic efficiency.
- Debris Filtration: Prevents damage from system sediment with a dual-stage filtration design.
- Mechanical Integrity: Flanged steel construction engineered to withstand high-pressure hydronic environments.
⚠️ Application Profile: Ideal for commercial HVAC, large-scale chiller loops, and boiler feed water systems requiring reliable pump protection and streamlined flow control.
