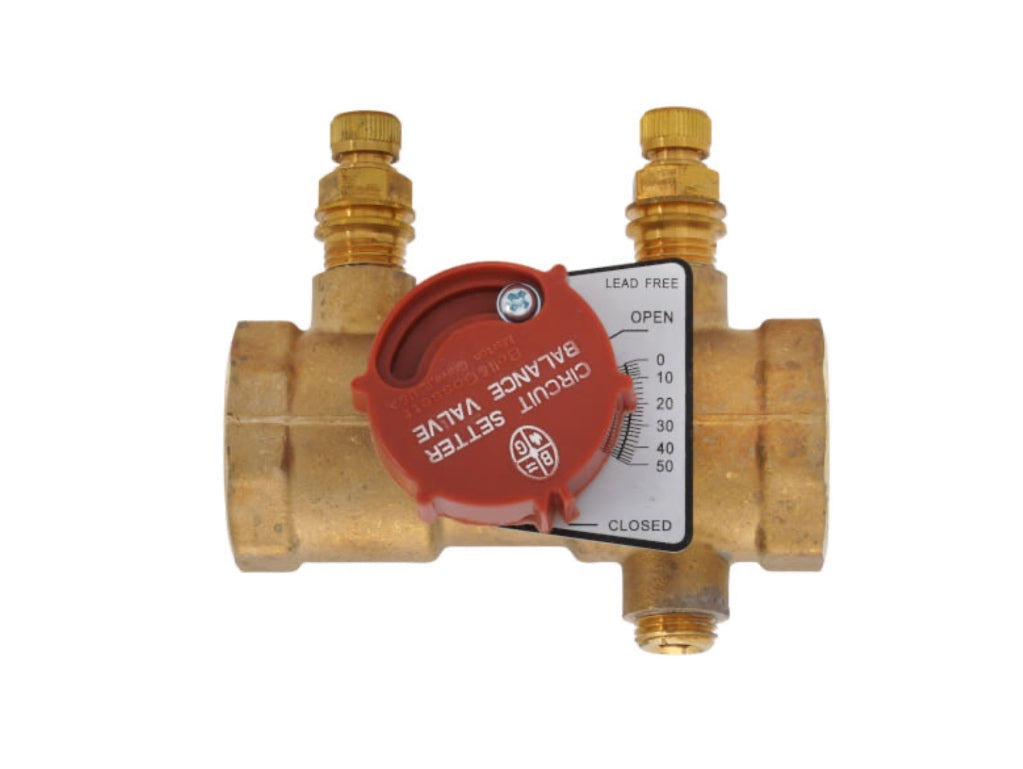

Bell & Gossett 117416LF CB 1 Inch Circuit Setter Balance Valve
Bell & Gossett 117416LF CB 1 Inch Circuit Setter Balance Valve
National Boiler Supply is a premier, authorized procurement distributor for high-efficiency commercial equipment. Every order ships factory-direct, completely insured, and backed by full manufacturer engineering warranties and technical field support.
| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | 117416LF |
| Model Designation | CB-1-LF (Circuit Setter Plus® Series) |
| Pipe Connection Size | 1" FNPT (Female Threaded) |
| Max Operating Pressure | 400 PSI WOG (27.6 bar) |
| Max Operating Temperature | -4°F to 250°F (-20°C to 121°C) |
| Body Construction | Lead-Free Brass |
| Compliance & Certifications | NSF/ANSI 372, CSA Certified |
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Logistics Notice
Fulfillment parameters vary based on active supply chain distributions and contract schedules:
- Standard inventory configurations typically dispatch within 24 to 48 hours.
- High-capacity commercial units or specialty phase requirements may face factory production lead times.
Need precise lead times, formal submittals, or shipping coordination for contract fulfillment? Please Request a Commercial Quote or contact our procurement support line.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →Bell & Gossett 117416LF (CB-1-LF) 1" Lead-Free Circuit Setter Balance Valve
Engineered for precise hydronic system balancing and energy-efficient flow control, the Bell & Gossett 117416LF (Series CB-1-LF) is a heavy-duty lead-free Circuit Setter Plus® valve designed for commercial heating, cooling, and potable water applications. Featuring a 1" FNPT female threaded connection and a 400 PSI maximum operating pressure, this calibrated balance valve serves as a multi-function balancing valve, shut-off valve, and flow measurement station in a single compact footprint.
The CB-1-LF series utilizes a lead-free brass body paired with a full-port ball design and an adjustable memory stop indicator. This precision mechanism allows system balance contractors and engineers to set exact design flow rates, lock in settings, and shut off flow for system maintenance with easy return to the pre-set position without re-balancing.
Key System Performance Baselines:
- Precision Calibrated Flow Control: Bi-directional flow design with calibrated nameplate and adjustable memory stop enables exact system balance and quick reset after service.
- Integrated Pressure/Temperature Ports: Factory-equipped with dual readout P/T valves for fast differential pressure measurement and system diagnostic checks.
- Lead-Free Certified Construction: Manufactured using heavy-duty lead-free brass compliant with NSF/ANSI 372 standards for safe use across hydronic and potable water systems.
- Full-Port Shut-Off Capability: Works as a dependable shut-off valve to isolate equipment or zone loops without requiring separate isolation valves.
⚠️ Application Profile: Ideal for commercial hydronic HVAC cooling loops, hot water heating lines, chilled water coils, heat pumps, and potable water distribution lines requiring precise 1" FNPT flow regulation up to 400 PSI.
