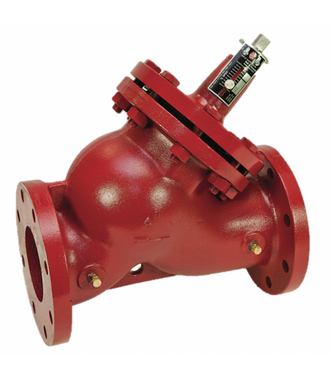

Bell & Gossett 117470 CB-4F Circuit Setter Balance Valve, 4" Flanged
Bell & Gossett 117470 CB-4F Circuit Setter Balance Valve, 4" Flanged
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | 117470 |
| Model Designation | CB-4F |
| Connection Size | 4" |
| Connection Type | Flanged |
Maintain precise flow control in your hydronic heating or cooling system with the Bell & Gossett 117470 CB-4F Circuit Setter. This professional-grade balance valve is engineered to provide accurate, repeatable flow adjustments, ensuring that every terminal unit in your circuit receives the correct volume of fluid for maximum system efficiency.
The CB-4F operates by utilizing a calibrated venturi combined with an integrated stem-actuated valve mechanism. By adjusting the internal calibrated orifice and measuring the differential pressure across the flow ports, technicians can fine-tune the GPM to meet specific design requirements, effectively eliminating hotspots or insufficient heating and cooling across the building architecture.
Key System Performance Baselines:
- Precision Balancing: Facilitates exact flow rate calibration across diverse piping configurations.
- Flanged Durability: Engineered for robust integration into 4-inch piping systems with high-pressure handling capabilities.
- System Optimization: Reduces energy consumption by ensuring pumps are not over-working against imbalanced circuits.
- Read-Out Ports: Features high-visibility ports for quick, accurate differential pressure readings during field commissioning.
⚠️ Application Profile: Ideal for commercial HVAC, large-scale chilled water loops, hot water heating systems, and multi-zone hydronic circuits requiring rigorous flow management.
