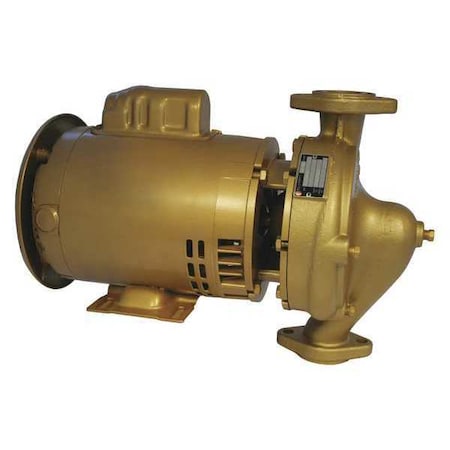

Bell & Gossett 179324LF - Circulating Pump, E90 BE9014 S Series, 1 hp, Bronze, 2 in Flanged, 115/208-230 V AC
Bell & Gossett 179324LF - Circulating Pump, E90 BE9014 S Series, 1 hp, Bronze, 2 in Flanged, 115/208-230 V AC
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The BELL & GOSSETT 179324LF is a 1 hp hot water circulating pump (Series BE9014S, Series Family E90) with a single-speed, single-phase motor rated for operation at 115/208–230 V AC, 60 Hz and a rated maximum speed: 1725 RPM. It is rated for continuous duty, includes a flange connection and volute, and has 2 in inlet and outlet connections for circulating water, with a rated flow: 160 gpm at 14 ft head and a rated shut-off head: 30 ft.
Key Features:
- Item: Circulating Pump; Series BE9014S (E90)
- Horsepower: 1 hp; Number of speeds: 1; Phase: Single
- Nameplate Voltage: 115/208–230 V AC; Hz: 60; Rated maximum speed: 1725 RPM
- Amps: Nameplate current: 7.7–15.2 A (varies by voltage; see product nameplate for exact values)
- Duty: Rated for continuous duty
- Connection Standard: Flange; Includes Flange; Includes Volute
- Inlet/Outlet Size / Compatible Intake/Discharge Pipe Size / For Inlet/Discharge Pipe Diameter: 2 in
- Compatible Media Type: Water; Specified by the manufacturer for use with potable water systems; Low-lead designation indicated: CE
- Max. GPM @ Head: Rated flow: 160 gpm at 14 ft head; Rated shut-off head: 30 ft; Rated maximum operating pressure: 175 psi
- Media Temperature Range: Rated media temperature range: -10 to 200 °F
- Pump Housing / Casing Material: Bronze; Impeller Type: Closed; Impeller Material: ASTM; Shaft Material: Stainless Steel
- Motor Type / Frame: 56J (NEMA 56J); Motor Enclosure Design: Open Drip Proof; Motor Ambient Temp. Rating: 40 °C
- Face to Face Dimension: 11 1/2 in
