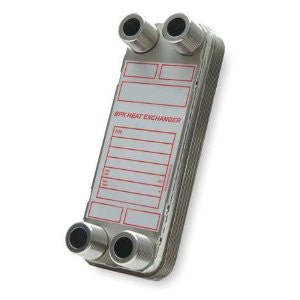

Bell & Gossett BP410-20LP Brazed Plate Heat Exchanger
Bell & Gossett BP410-20LP Brazed Plate Heat Exchanger
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | 5-695-10-020-001 |
| Model Designation | BP410-20LP |
| Body Construction | Brazed Stainless Steel |
Optimized for superior thermal transfer, the BP410-20LP brazed plate heat exchanger serves as a critical component for maintaining consistent fluid temperatures in hydronic systems. This Bell & Gossett 5-695-10-020-001 unit is engineered for high-pressure handling and maximum surface area exposure to ensure efficient heat exchange between primary and secondary circuits.
The unit utilizes a series of corrugated stainless steel plates that are vacuum-brazed together to create a robust, compact frame. This design promotes turbulent flow, which maximizes the heat transfer coefficient while minimizing the physical footprint within mechanical rooms.
Key System Performance Baselines:
- Thermal Efficiency: Engineered for high-velocity heat transfer in compact liquid-to-liquid applications.
- Pressure Rating: Robust construction designed to withstand high operational pressures common in modern hydronic loops.
- Space Optimization: Compact brazed design offers a significantly smaller installation footprint compared to traditional shell and tube exchangers.
⚠️ Application Profile: Ideal for commercial boiler systems, residential hydronic heating loops, domestic hot water production, and radiant floor manifold temperature regulation.
