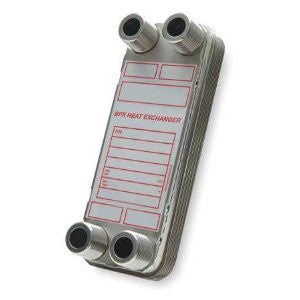

Bell & Gossett BP411-30 Brazed Plate Heat Exchanger
Bell & Gossett BP411-30 Brazed Plate Heat Exchanger
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | 5-686-04-030-003 |
| Model Designation | BP411-30 |
| Body Construction | Brazed Stainless Steel |
Efficient heat transfer is critical for hydronic system performance, and the BP411-30 brazed plate heat exchanger by Bell & Gossett (model 5-686-04-030-003) is engineered to deliver consistent thermal exchange. This compact unit is ideal for high-pressure and high-temperature applications where space-saving design and optimal energy recovery are primary requirements.
The unit functions through a series of corrugated stainless steel plates that create turbulent flow. This turbulence ensures high heat transfer coefficients even at lower flow velocities, effectively minimizing fouling while maximizing the temperature approach between fluids. The brazed construction ensures a robust, leak-proof seal between the plates, providing long-term structural integrity for demanding HVAC environments.
Key System Performance Baselines:
- Thermal Efficiency: Optimized plate geometry promotes high turbulence for superior heat exchange.
- Structural Integrity: Durable brazed stainless steel construction withstands high operating pressures.
- Compact Footprint: Highly efficient design reduces physical space requirements compared to traditional shell and tube exchangers.
⚠️ Application Profile: Primarily utilized in residential and commercial hydronic heating systems, domestic hot water production, solar thermal installations, and radiant floor heating setups.
