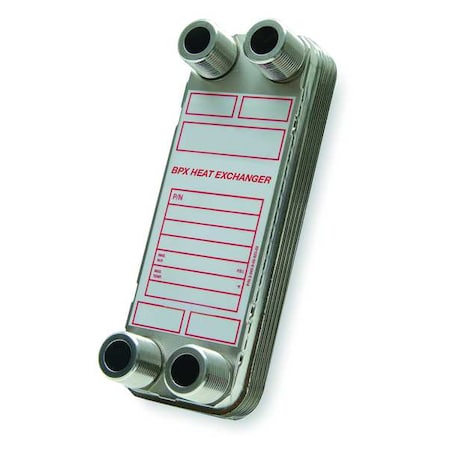

Bell & Gossett BP422-100-LCA - 100 Plate Heat Exchanger (BP422-100-LCA)

The BELL & GOSSETT BP422-100-LCA Heat Exchanger is a brazed plate heat exchanger designed for liquid and oil cooling, refrigerant evaporation and condensation, and hydronic system applications. It features 100 stainless steel plates brazed with copper for efficient heat transfer and durability. The unit has a flow capacity of 225 gpm and operates within a wide temperature range. It meets ASME, ASTM, CRN, and UL standards for certified performance and construction quality.

Key Features:

• - Type: Brazed plate heat exchanger
• - Series: BPX
• - Number of Plates: 100
• - Flow Capacity: 225 gpm
• - Heat Transfer Capacity: 5,900,000 BtuH (water to water), 636,250 BtuH (oil to water)
• - Material: 316L stainless steel plates and cover; copper brazing
• - Connections: 2 in male NPT stainless steel fittings
• - Operating Range: -40°F to 300°F; rated for 435 psig pressure
• - Surface Area: 1.062 sq ft per plate; total 104.17 sq ft
• - Dimensions: 24.3 in H × 7.48 in W × 11.91 in L; weight 112.4 lb
• - Certifications: ASME, ASTM, CRN, UL Listed
