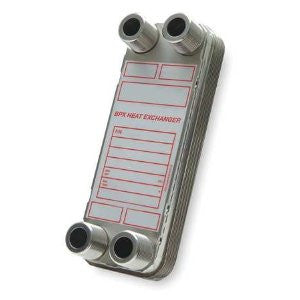

Bell & Gossett BP424-30 Brazed Plate Heat Exchanger
Bell & Gossett BP424-30 Brazed Plate Heat Exchanger
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | 5-686-06-030-009 |
| Model Designation | BP424-30 |
Maximize your thermal management efficiency with the Bell & Gossett BP424-30 heat exchanger, designed to provide superior heat transfer in demanding hydronic applications. Featuring the high-performance 5-686-06-030-009 model configuration, this unit is engineered to deliver consistent performance and reliability for your HVAC systems, ensuring rapid heat exchange and long-term durability.
This brazed plate heat exchanger utilizes a series of corrugated stainless steel plates to create a highly turbulent flow, which effectively maximizes heat transfer coefficients while minimizing pressure drop. The compact footprint allows for seamless integration into existing piping configurations, offering a robust solution for fluid-to-fluid heat exchange requirements.
Key System Performance Baselines:
- Thermal Efficiency: High-turbulence plate geometry optimizes heat transfer rates.
- Structural Integrity: Durable brazed construction ensures long-term leak-free operation.
- System Compatibility: Designed for seamless integration into standard hydronic heating and cooling loops.
⚠️ Application Profile: Ideal for residential hydronic space heating, domestic hot water production, radiant floor heating loops, and small-scale commercial hydronic heat transfer stations.
