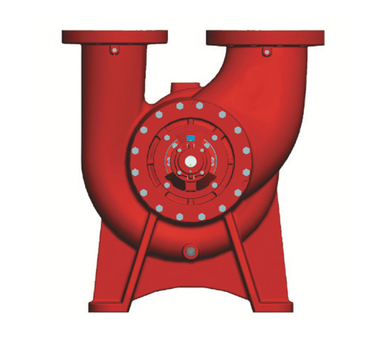

Bell & Gossett P75565 Volute for Series VSC 6x6x9-3/4B or 6x6x9-3/4L Pumps
Bell & Gossett P75565 Volute for Series VSC 6x6x9-3/4B or 6x6x9-3/4L Pumps
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | P75565 |
| Model Designation | Series VSC |
| Connection Size | 6x6x9-3/4 |
Maintain the hydraulic efficiency of your hydronic system with the P75565 Bell & Gossett volute, specifically engineered for the Series VSC 6x6x9-3/4B or 6x6x9-3/4L pump models. This critical housing component serves as the pressure-retaining casing that converts the velocity of the fluid exiting the impeller into pressure, ensuring optimal flow characteristics throughout your circulation loop.
The volute acts as the heart of the pump's hydraulic chamber, guiding fluid seamlessly from the impeller to the discharge nozzle. By maintaining precise internal tolerances, this B&G component ensures the VSX platform's time-proven performance, reducing pump room footprint requirements while sustaining high-head, high-flow operational standards.
Key System Performance Baselines:
- Hydraulic Efficiency: Designed for seamless integration with the VSC vertical split-case design.
- Structural Integrity: Engineered to withstand the pressure requirements of demanding HVAC circulator applications.
- Compact Design: Supports the platform’s capacity to reduce footprint by up to 40% compared to traditional inline pumps.
⚠️ Application Profile: Primarily used in commercial HVAC chilled and hot water systems, secondary pumping circuits, and large-scale industrial fluid transfer stations where space-constrained mechanical rooms require vertical pump configurations.
