Bell & Gossett 101232LF 1 Inch Lead-Free Checktrol Flange Set
Bell & Gossett 101232LF 1 Inch Lead-Free Checktrol Flange Set
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.

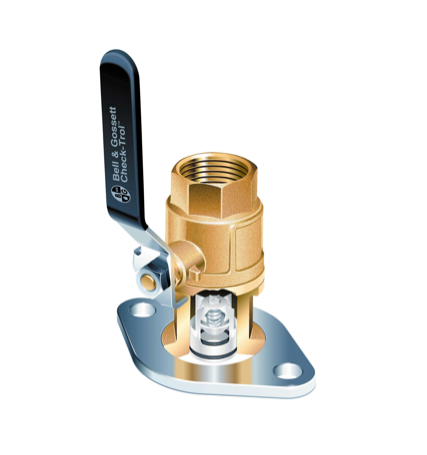

Streamline your hydronic system installations and isolate your circulator pumps with the premium Bell & Gossett 101232LF Checktrol Flange Set. This heavy-duty 1-inch NPT flange set combines a standard mating flange with an integrated, spring-loaded check valve, eliminating the need to install a separate inline check valve in tight piping configurations.
Manufactured from robust lead-free brass, it is fully certified for potable water systems and commercial/residential closed-loop space heating. It features a convenient built-in bypass mechanism that allows you to easily manually drain or bleed your lines during routine system flushing.
Key Performance Features:
- Space-Saving 2-in-1 Design: Combines an isolation pump flange with a high-flow internal check valve to minimize installation space and reduce leak points.
- Safe for Potable Water: Certified lead-free brass construction compliant with NSF/ANSI 372 and NSF/ANSI 61 standards.
- Broad Circulator Compatibility: Engineered for seamless mating with popular Bell & Gossett pump series including NRF, NBF, SSF, Series 100, LR, PR, PL-30, PL-36, and PL-55 units.
- Simplified System Maintenance: Includes an integrated manual bleed/bypass screw for clean, efficient line servicing.
| Specification Parameter | Engineering Value |
|---|---|
| Manufacturer | Bell & Gossett (Xylem) |
| Model Number / MPN | 101232LF |
| Connection Size | 1" Female NPT Threaded |
| Material Body | Lead-Free Brass |
| Valve Feature | Integrated Spring-Loaded Check Valve |
| Pump Compatibility | NRF, NBF, SSF, Series 100, LR, PR, PL-30, PL-36, PL-55 |
| Compliance Certifications | NSF/ANSI 61, NSF/ANSI 372, Lead-Free Certified |
