Bell & Gossett Series e-1510 2AB Base-Mounted End Suction Pump
Bell & Gossett Series e-1510 2AB Base-Mounted End Suction Pump
National Boiler Supply is a premier, authorized procurement distributor for high-efficiency commercial equipment. Every order ships factory-direct, completely insured, and backed by full manufacturer engineering warranties and technical field support.
| Specification Parameter | Official Factory Value |
|---|---|
| Suction Flange Size (Inlet) | 2-1/2" ANSI Flanged Connection Face |
| Discharge Flange Size (Outlet) | 2" ANSI Flanged Centerline Connection Face |
| Impeller Nominal Diameter | 7" Frame Model (Custom Trimmed to Order) |
| Motor Alignment Layout | Base-Mounted Frame with Flexible Spacer Coupling |
| Maximum Operating Pressure | 175 PSI Standard Work Load (Optional 250 PSI Capacity) |
| Maximum Fluid Temperature | 250°F (121°C) Continuous Working Limit |
| Volute Enclosure Base | ASTM A48 Class 30 Cast Iron Base Framing |
| Impeller Material | Dynamically Balanced Lead-Free Bronze Casting |
Couldn't load pickup availability

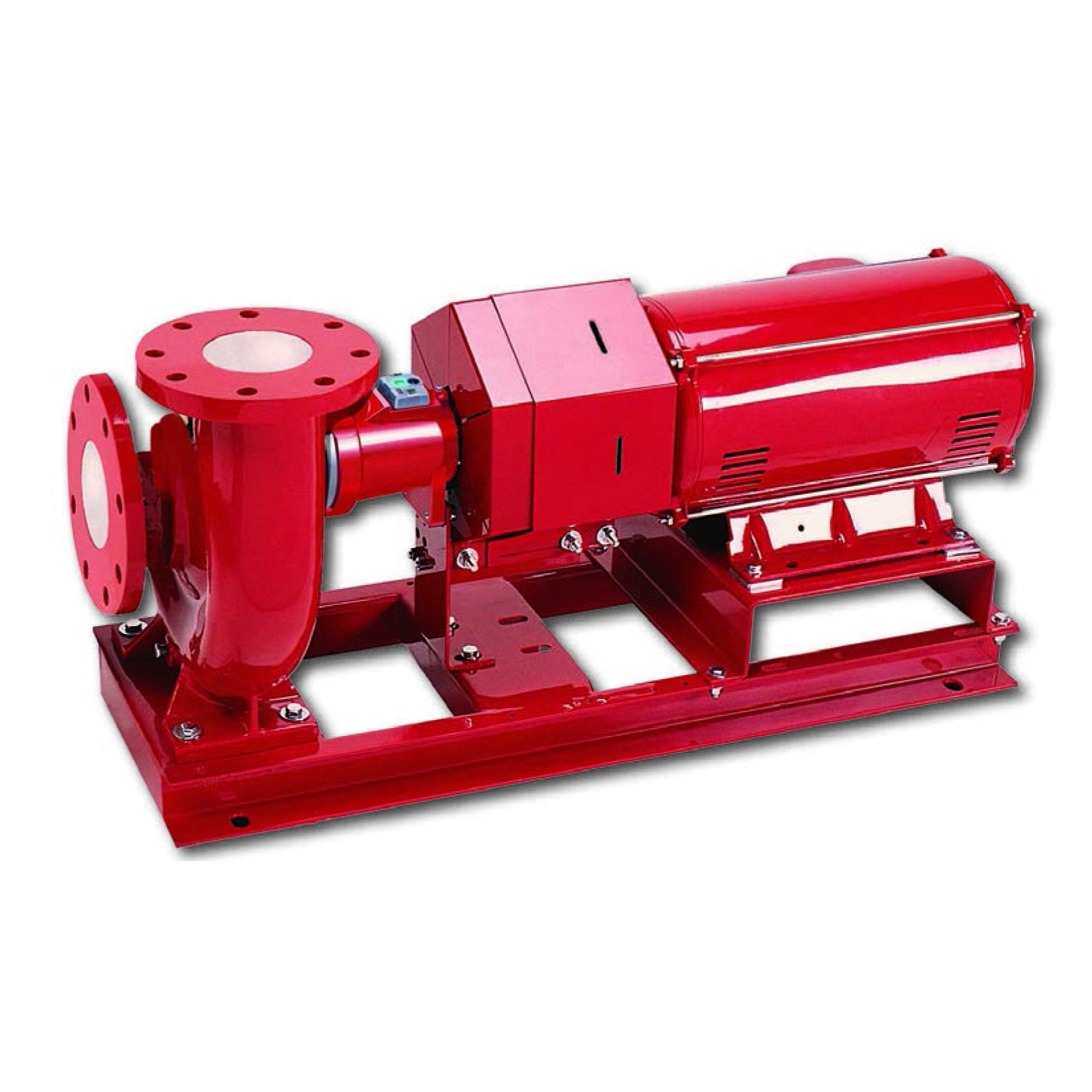

The Bell & Gossett Series e-1510 2AB is an industry-leading, base-mounted end-suction centrifugal pump engineered for maximum hydraulic efficiency, rugged durability, and whisper-quiet performance in commercial HVAC and industrial fluid processing loops. Mounted to a heavy-duty structural steel base plate, this pump serves as the foundational backbone for high-volume chilled water, condenser water, and primary hydronic heating distribution systems.
State-of-the-Art Hydraulic Efficiency
The e-1510 2AB features an advanced internal computational fluid dynamics (CFD) optimized volute casing and a precision-trimmed, dynamically balanced enclosed impeller. This cutting-edge design drastically minimizes internal turbulence, reduces operating costs, and maximizes energy efficiency. Backed by a true back-pull-out architecture, facility technicians can execute comprehensive service routines without ever disturbing the primary piping alignment or disconnecting the volute from the system.
Heavy Commercial Facility Benefits
- Center-Line Discharge Casing: Features an inherently self-venting vertical centerline discharge layout that eliminates vapor lock risks and structurally simplifies mechanical room piping configurations.
- Premium Foot-Supported Volute: The heavy cast-iron pump casing is supported by its own independent rugged feet, absorbing pipe-strain forces directly and preventing misalignments at the shaft coupling.
- Internally Flushed Mechanical Seals: Engineered with a specialized internal flushing pathway that constantly bathes the seal faces in clean process water, actively sweeping away grit to extend component lifespans.
Looking for exact pressure drop curves or flanged bolt dimensions? Click here to request the official factory submittal manuals from our engineering desk.
