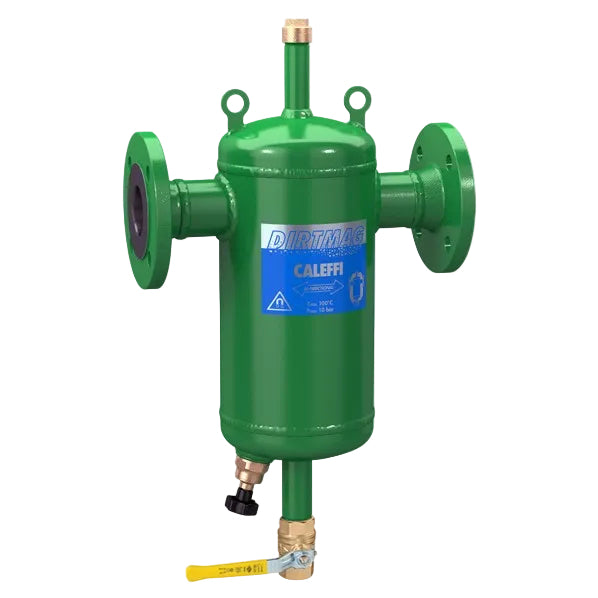

Caleffi NA546M DISCALDIRTMAG® 3-Inch Commercial Flanged Magnetic Air/Dirt Separator
Caleffi NA546M DISCALDIRTMAG® 3-Inch Commercial Flanged Magnetic Air/Dirt Separator
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The Caleffi NA546M Series DISCALDIRTMAG® is an all-in-one commercial air, dirt, and magnetic separator designed for high-performance hydronic heating and cooling systems. By combining continuous micro-bubble air elimination with a high-capacity dirt collection chamber and a powerful magnetic field, it provides total system protection, prevents component wear, and maintains peak heat transfer efficiency across large-scale commercial networks.
Key Performance Features:
- Triple-Action Protection: Simultaneously eliminates micro-bubbles down to micron size, traps non-magnetic debris, and captures fine magnetite (black iron oxide) via a powerful external neodymium magnetic band.
- Zero System Downtime: The bottom blowdown drain valve allows accumulated dirt and ferrous debris to be safely flushed out of the collection chamber while the hydronic system remains fully operational under pressure.
- Ultra-Low Pressure Drop: Engineered with a high-volume internal chamber that minimizes flow resistance, ensuring consistent flow rates and reducing pumping energy costs over the lifespan of the system.
Documents
Product Specifications
| Brand: | Caleffi |
| Series: | NA546M DISCALDIRTMAG® |
| Model Number: | NA546080M |
| Connection Size: | 3" Flanged (ANSI 150 Class RF) |
| Body Material: | Epoxy-Resin Painted Steel |
| Max Operating Pressure: | 150 psi (10 bar) |
| Temperature Range: | 32°F – 270°F (without insulation) |
| Particle Separation Efficiency: | Down to 5 μm (microns) |
| Medium Compatibility: | Water or Non-Hazardous Glycol Solutions (Up to 50%) |
