Copper 90-Degree C x C Elbow
Copper 90-Degree C x C Elbow
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.

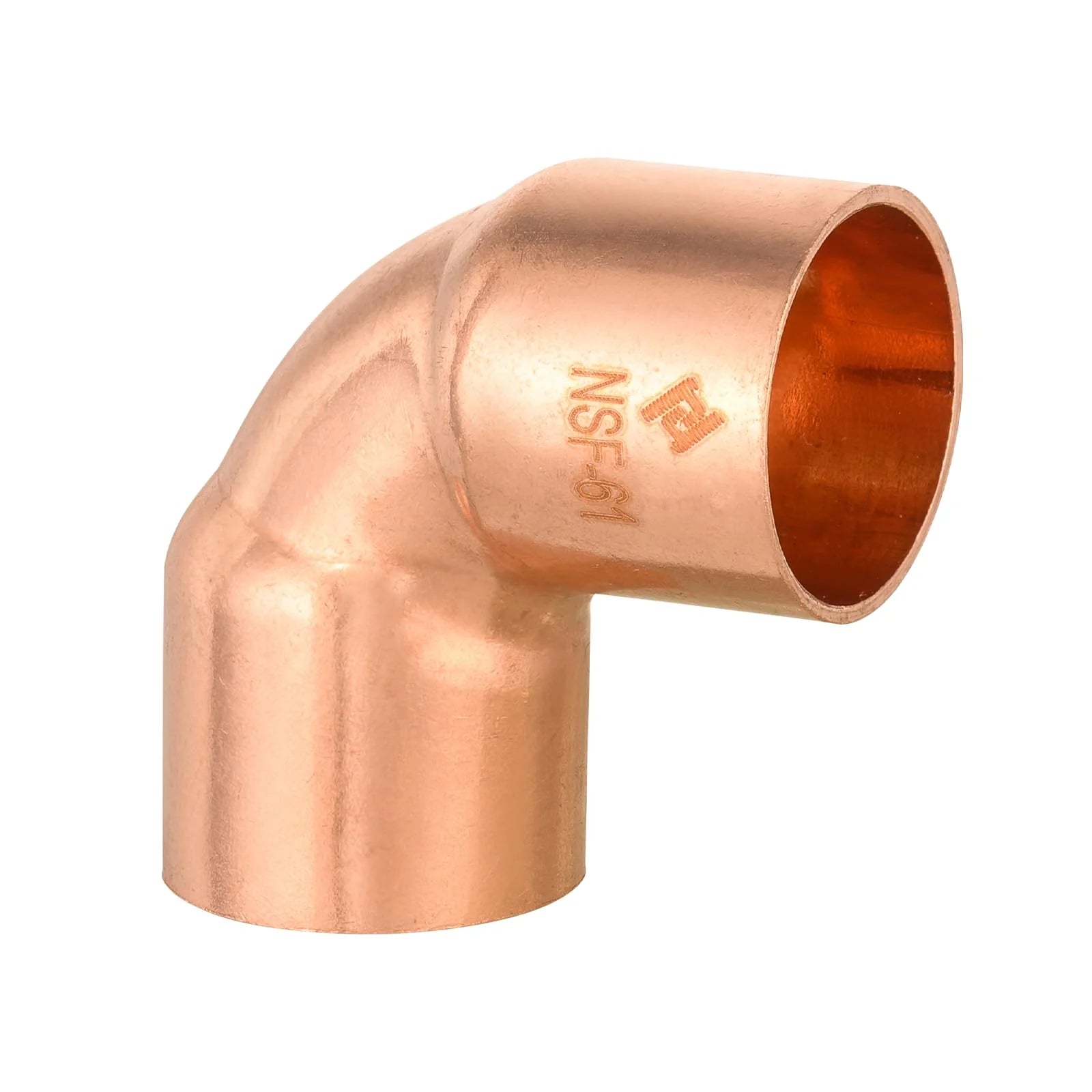

Copper 90-Degree Elbow (C x C)
Engineered to make clean, tight 90-degree directional turns inside high-pressure fluid networks, our Copper 90-Degree Elbow (C x C) delivers optimal hydraulic performance and long-term joint integrity. This rigid quarter-bend component features two precision-formed female solder cups (Copper x Copper) designed to receive plain-end copper tubing sticks seamlessly, allowing for streamlined line routing around structural framing and mechanical constraints.
Manufactured from high-purity, seamless wrot copper conforming to strict ASME B16.22 benchmarks, this pressure fitting provides uniform wall depth to resist heavy physical stress, sharp thermal fluctuations, and long-term dezincification.
Key System Performance Baselines:
- Application Profile: Engineered for commercial chilled water loops, hydronic heating infrastructure, domestic potable supply lines, and refrigeration layouts.
- Space-Efficient Curvature: Short-radius 90-degree turn configuration allows for neat, compact plumbing manifold headers and perimeter line wall drops.
- Connection Profile: Solder Cup x Solder Cup (C x C) ports establish high-surface capillary contact zones for high-strength soldering or brazing.
- Trade Compliance: Fabricated from lead-free, naturally bacteriostatic material certified to ASME B16.22 and NSF/ANSI Standard 61 requirements for potable water service.
⚠️ Installation Advisory: Ensure both the tube end and internal fitting cup are thoroughly cleaned down to bright metal with a fitting brush or emery cloth before applying flux. Oxidized surfaces impede proper capillary draw, creating structural voids and high-risk leak paths.
| Nominal Connection Size | Fitting Type | Material Composition | Max Operating Temperature | Industry Specifications |
|---|---|---|---|---|
| 1/4" | Wrot Copper (Seamless) | ≥ 99.9% Pure Copper | Up to 400°F (Depending on Solder) | ASME B16.22 / NSF 61 |
| 3/8" | Wrot Copper (Seamless) | ≥ 99.9% Pure Copper | Up to 400°F (Depending on Solder) | ASME B16.22 / NSF 61 |
| 1/2" | Wrot Copper (Seamless) | ≥ 99.9% Pure Copper | Up to 400°F (Depending on Solder) | ASME B16.22 / NSF 61 |
| 3/4" | Wrot Copper (Seamless) | ≥ 99.9% Pure Copper | Up to 400°F (Depending on Solder) | ASME B16.22 / NSF 61 |
| 1" | Wrot Copper (Seamless) | ≥ 99.9% Pure Copper | Up to 400°F (Depending on Solder) | ASME B16.22 / NSF 61 |
| 1-1/4" | Wrot Copper (Seamless) | ≥ 99.9% Pure Copper | Up to 400°F (Depending on Solder) | ASME B16.22 / NSF 61 |
| 1-1/2" | Wrot Copper (Seamless) | ≥ 99.9% Pure Copper | Up to 400°F (Depending on Solder) | ASME B16.22 / NSF 61 |
| 2" | Wrot Copper (Seamless) | ≥ 99.9% Pure Copper | Up to 400°F (Depending on Solder) | ASME B16.22 / NSF 61 |
