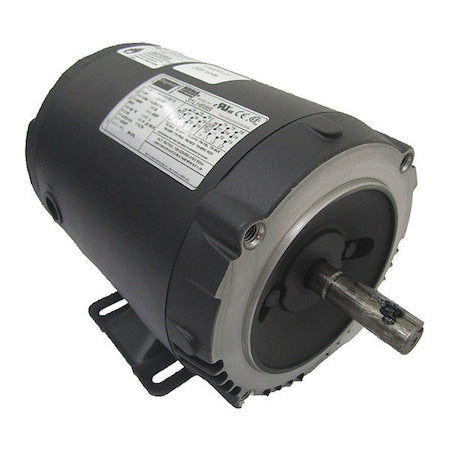

Dayton 31LH68 - Three-Phase General Purpose Motor, 1 1/2 HP, 56 HC Frame, 230/460 V AC Voltage, 1760 Nameplate RPM

The DAYTON - 31LH68 is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This motor is primarily used in industrial and commercial settings for power transmission and pneumatics applications. It effectively converts electrical energy into mechanical energy to operate various types of machinery. Its versatility allows it to be utilized across diverse sectors, from manufacturing lines to HVAC systems.

Key Features of the DAYTON - 31LH68 General Purpose Motor:

• CC Number: The unique identifier CC029A assigned by EASA helps classify and track this motor based on its design, specifications, and performance characteristics.
• Duty Cycle: This motor has a continuous duty cycle, which is typically used in industrial applications.
• Frame: The 56HC frame houses and supports the internal parts of the motor conforming to standard specifications for compatibility and interchangeability.
• Full Load Amps: During full capacity operation, this motor draws a maximum current of 4.3/2.1 A; it's important to consider these values when determining power supply requirements.
• Inverter Rated: Yes - means that the motor is compatible with being powered by a variable frequency drive which may allow for control over speed and torque depending on specific application needs.
• Horsepower (HP): The output power of this general-purpose motor is rated at 1 1/2 HP; its suitability for any particular application will depend on individual use-case scenarios.
• Nominal Efficiency: The nominal efficiency rating under standard conditions stands at 86.5%; actual performance may vary based on usage circumstances
