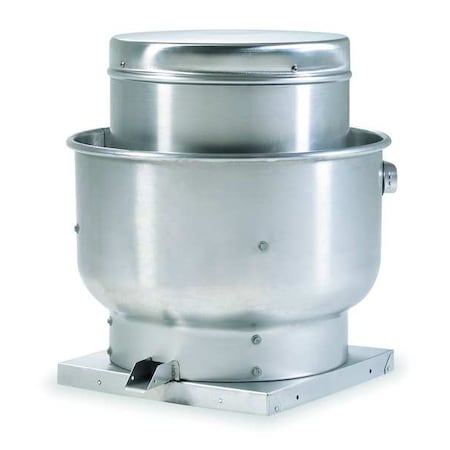

Dayton 4YY22 - Centrifugal Upblast Roof Exhaust Fan: Belt Drive, Less Drive Pack, 36 in Wheel, 320 RPM to 690 RPM
Dayton 4YY22 - Centrifugal Upblast Roof Exhaust Fan: Belt Drive, Less Drive Pack, 36 in Wheel, 320 RPM to 690 RPM
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
This item is a centrifugal upblast roof exhaust fan configured for roof curb mounting and vertical air discharge. It uses a belt-driven backward-inclined aluminum wheel housed in a spun aluminum enclosure. The unit is supplied without a motor or drive package and is intended for exhausting kitchen air within specified airflow, temperature, and static pressure limits.
Key Features:
- Fan Type: Centrifugal upblast roof exhaust fan with backward-inclined wheel.
- Airflow Capacity: Airflow range specified from 8,631 to 18,611 cfm at 0.0 in static pressure.
- Drive Configuration: Belt drive design; motor and drive package not included.
- Wheel and Housing Materials: Aluminum wheel with spun aluminum housing.
- Operating Limits: Maximum static pressure specified at 1-3/4 in wc and maximum inlet air temperature up to 300°F.
- Speed Range: Fan speed range specified from 320 to 690 RPM.
- Bearings: Regreasable pillow block bearing configuration.
- Mounting: Roof curb mounting with a square base measuring 46 in x 46 in.
