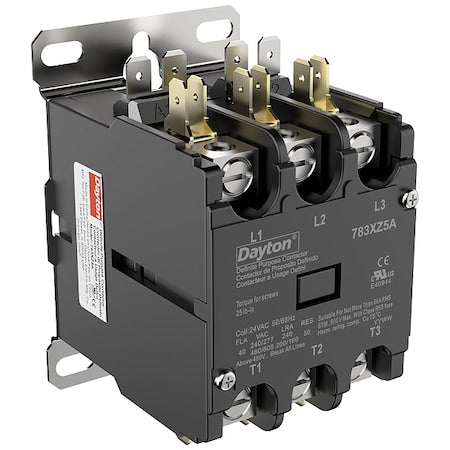

Dayton 783XZ5 - Definite Purpose Magnetic Contactor, 24 V AC, 3 P, Non-Reversing, 3 Phase, Box Lug
Dayton 783XZ5 - Definite Purpose Magnetic Contactor, 24 V AC, 3 P, Non-Reversing, 3 Phase, Box Lug
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The DAYTON - 783XZ5 is a Definite Purpose Magnetic Contactor, an industrial electrical device used to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, either allowing or interrupting power supply based on need. This tool is commonly utilized for managing and automating machinery operations across various sectors such as HVAC, data processing, and manufacturing.
- Auxiliary Contact Module Capacity: The contactor can control up to 2 additional secondary circuits providing flexibility in managing multiple electrical loads or signals.
- Coil Voltage: Requires a specific voltage range of 24V AC for the coil within the contactor to effectively engage or disengage its electrical circuit.
- Contact Material: Constructed with Silver Tin Oxide which influences conductivity, durability, and resistance to corrosion.
- Electrical Operating Durability: Has been tested for electrical operation up to 200,000 cycles in controlled conditions.
- Frequency: Rated for operation within the specified frequency range of 50/60 Hz.
- Full Load Amps-Inductive & Resistive: Rated for continuous operation with inductive loads such as motors or transformers up to a maximum current of 40A, and resistive loads up to a maximum current of 50A under specified conditions
- Horsepower @ Single Phase & Three Phase - Various Voltages AC : Compatible with varying levels of horsepower, ranging from single phase power supplies starting at half horsepower extending up to three-phase systems. The actual motor capacity may vary based on the voltage supplied."
