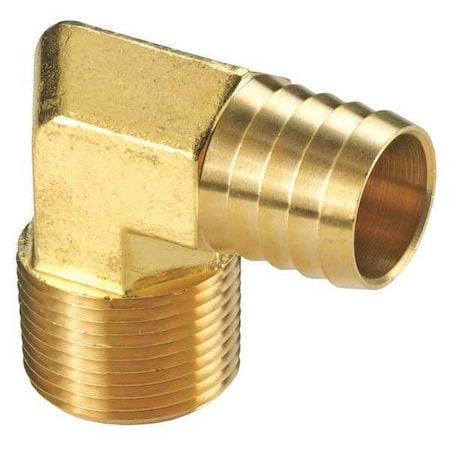

Dixon 1290604C - Male NPT, 1/4"x Hose Barb, 3/8", 90deg., Elbow

The DIXON - 1290604C is a fitting specifically designed to be utilized with push-on hoses. This industrial-grade fitting provides a secure connection without requiring clamps, ferrules, or crimpers. The installation process follows the standard procedures for this type of product. DIXON is known for producing a range of industrial and commercial hose fittings, with the 1290604C being one of many options in their catalog. This part is suitable for various industrial or commercial applications where the use of push-on hoses is required, subject to the specific requirements of each application.

Key Features:

• The hose fitting has a compatible hose I.D. of 1/4", indicating it can accommodate push-on hoses with the corresponding inner diameter.
• Features a male NPT connection size of 1/4", indicating that it can fit National Pipe Thread of the same dimensions on the female side.
• Made of brass, ensuring notable durability and resistance to corrosion under several environments.
• It has a maximum working pressure of 300 PSI, marking its capacity to endure high-pressure applications without failure.
• With an overall length of 1.38", the fitting is compact enough for fitting into various hose assembly configurations.
• It has a hex size of 0.625", enabling it to support a secure installation with a wrench of the same size.
