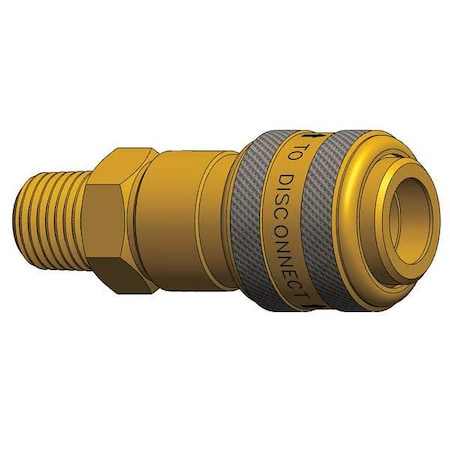

Dixon 2DM3-B - Coupler, Brass, 3/8 MNPT, 1/4 Body

The DIXON - 2DM3-B is a hose coupling for fast connection and disconnection without hand tools, with a sleeve-type locking mechanism. This brass coupling provides a sealed connection at the specified pressure rating and within the specified operating temperature range, and is integrated with a tubular valve to control flow. It is intended for installation on compatible hose or pipe ends using the specified NPT connection and thread size. The fitting is zinc plated and has a yellow color for visual identification, and is compatible with industrial interchange requirements when used with hoses/pipe fittings that match the specified connection type and size (3/8"-18 NPT; 3/8 in hose I.D.). For use in fluid or air transfer applications with compatible hose/pipe connections.

Key Features:

• - Coupling component: Socket
• - Connection type: NPT with 3/8"-18 thread size
• - Hose fitting gender: Male
• - Hose fitting size: 3/8 in
• - Designed for hose I.D. of 3/8 in
• - Coupling size (air coupling body size): 1/4 in
• - Maximum working pressure: 300 psi at 70°F (per manufacturer specification)
• - Maximum flow rate: 764.55 liters per minute (when operated under manufacturer-specified conditions)
• - Overall length: 2.38 in
• - Maximum outside diameter: 1 in
• - Seal material: Nitrile (Buna-N)
• - Operating temperature range: -40°F to 250°F (when operated within manufacturer specifications)
