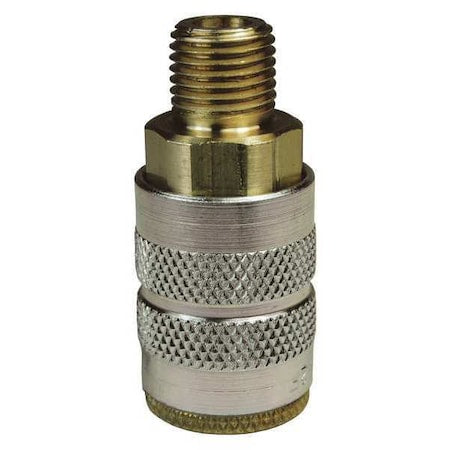

Dixon 2FM3-B - Male to Industrial Coupler,(M)NPT,1/4

The DIXON - 2FM3-B is designed for on-end hose or pipe connections, providing a leak-resistant interface for fluid and air lines. Constructed of brass with a zinc-plated finish, this coupling is compatible with hose fittings sized for 3/8 in inner diameter and features a 1/4 in NPT connection thread. It includes a valve component with a tubular valve type and uses a sleeve locking mechanism for attachment. Forms a seal when connected; maximum working pressure is 500 psi at 70°F. Temperature rating: -40°F to 250°F.

Key Features:

• - Material: Brass with zinc plated finish
• - Connection Type: 1/4 in NPT thread size for hose fitting
• - Hose Fitting Size: 3/8 in with matching hose inner diameter
• - Coupling Component: Socket with sleeve locking type
• - includes a tubular valve component for flow control
• - maximum flow rate: 764.55 lpm
• - maximum working pressure rating: 500 psi @ 70°F
• - Overall length: 2.06 in
• - Maximum outside diameter: 7/8 in
• - Seal Material: Nitrile
• - Interchange Type: Industrial
• - Color: Yellow
