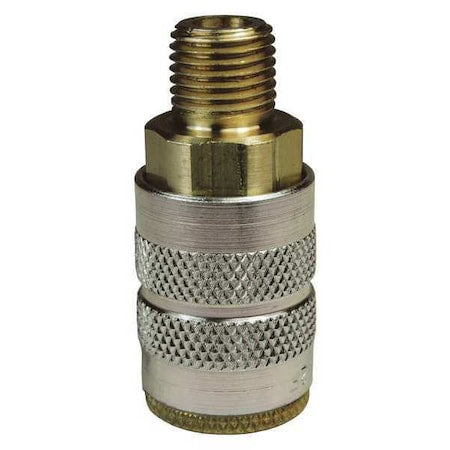

Dixon 3FM3 - Male to Indust. Coupler,(M)NPT,3/8,Steel

The DIXON - 3FM3 is a quick connect hose coupling designed for rapid connection and disconnection of hoses or pipes at their ends. It features a sleeve locking mechanism and includes a tubular valve that controls fluid or air flow. Meets the specified interchange/connection requirements for hoses/piping with the stated thread and inner diameter (3/8 in). The coupling is constructed of steel with a zinc-plated finish and a nitrile seal material. Intended for use with hoses/threads sized 3/8 in inner diameter and 3/8 in thread size, providing a maximum working pressure of 500 psi at 70°F (per published specifications) and a flow rate up to 1,274.26 liters per minute. Temperature rating: -40°F to 250°F (per published specifications).

Key Features:

• - Material: Steel construction with zinc plating for surface finish.
• - Connection: Male hose fitting with NPT connection type and 3/8 in thread size.
• - Coupling component: Socket with sleeve locking type for engagement when connected to the specified hose/pipe size and within the specified pressure and temperature ratings.
• - Valve: Includes a tubular valve for flow passage through the coupling.
• - Size and dimensions: 3/8 in coupling size and hose fitting size, 2.44 in overall length, and maximum outside diameter of 1 1/16 in.
• - Seal: Nitrile seal material to maintain a sealed connection.
• - Performance ratings: Maximum working pressure: 500 psi @ 70°F and max flow rate of 1,274.26 lpm.
• - Temperature range: Operates from -40°F to 250°F.
• - Application: Designed for use on the end of hose or pipe in settings requiring rapid hose assembly and disassembly.
