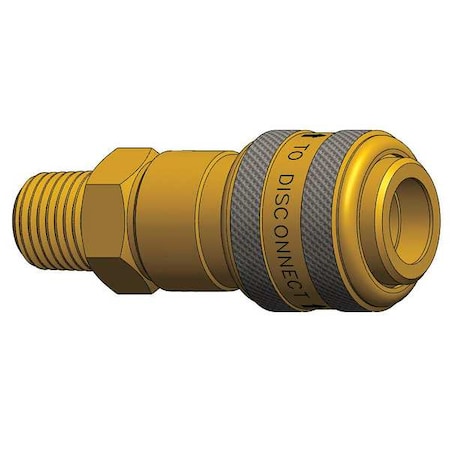

Dixon 4DM4-B - Male to Indust. Coupler,(M)NPT,1/2,Brass

The DIXON - 4DM4-B is a quick connect hose coupling intended to provide a sleeve locking connection that does not require tools for coupling, with a sleeve locking connection design. Constructed from brass with a zinc-plated finish, it incorporates a prong-type valve and nitrile seals intended to reduce leakage at the coupling when installed in accordance with applicable standards and specifications. For use with hose/pipe systems matching the specified fitting size and interchange compatibility. The maximum rated working pressure: 300 psi at 70°F and accommodates hose inner diameters of 1/2 inch.

Key Features:

• - Material: brass with zinc-plated finish
• - Connection Type: 1/2" NPT male thread, 1/2" hose fitting size.
• - Coupling Component: Socket with sleeve locking type.
• - Hose Fitting Gender: Male.
• - Includes Valve: Yes, with a prong valve mechanism.
• - Seal Material: Nitrile.
• - Maximum Rated Flow Rate: 2,576.83 liters per minute.
• - Operating Temperature Range (Rated): -40°F to 250°F.
• - Overall Length: 3.19 inches; Maximum Outside Diameter: 1 3/8 inches.
