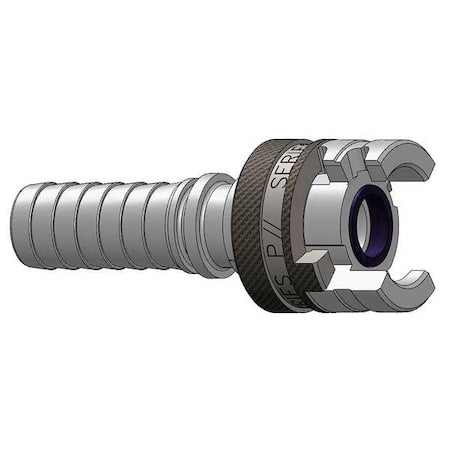

Dixon 4PS6-B - Barb to Thor Coupler,Barb,1/2,Brass

The DIXON - 4PS6-B Quick Connect Hose Coupling is a brass, push-to-connect socket supports push-to-connect operation for hose connection and disconnection without tools, rated for use with water or air systems, specifically suited for water or air applications on the end of hoses or pipes. It features a hose barb connection and a male hose fitting with a barb size and hose fitting size of 3/4 in, compatible with Thor style interchange standards. includes a nitrile seal; intended to form a sealed connection.

Key Features:

• - Material: Brass construction
• - Connection Type: Hose Barb with Male hose fitting
• - Barb Size and Hose Fitting Size: 3/4 in
• - Coupling Component: Socket
• - Coupling Locking Type: Push-to-Connect
• - Coupling and Body Size: 1/2 in
• - Seal Material: Nitrile
• - Finish/Coating: Zinc Plated
• - Temperature Range: -40°F to 250°F
• - Maximum Working Pressure: 300 psi at 70°F
• - Maximum Flow Rate: 7,079.21 liters per minute
• - Overall Length: 3.94 in
• - Maximum Outside Diameter: 1.56 in
• - For Hose I.D.: 3/4 in
• - Interchange Type: Thor
• - Applications: Water or Air use, installed on end of hose or pipe
• - Includes Valve: No
