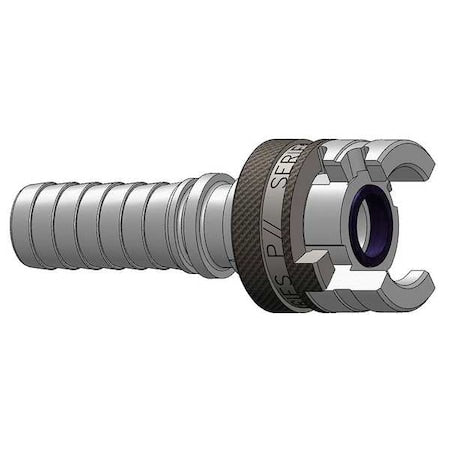

Dixon 4PS8-B - Quick Connect,Socket,1/2" Body,1" Barb

The DIXON - 4PS8-B is a quick connect hose coupling that is designed to provide tool-free push-to-connect engagement for hose coupling and uncoupling. It is compatible with water or air applications and fits on the end of hoses or pipes. The coupling includes a nitrile seal for sealing at the rated maximum working pressure. Constructed primarily of brass and finished with zinc plating, it is rated for pneumatic and fluid line applications within the specified temperature and maximum working pressure ranges.

Key Features:

• - Connection type: Hose Barb with a 1 in barb size, compatible with 1 in hose inner diameter.
• - Coupling size and body size both measure 1/2 in, fitting standard 1/2 in ports.
• - Coupling component: Socket for connection.
• - Locking mechanism: Push-to-Connect for tool-free engagement.
• - Seal material: Nitrile for fluid sealing.
• - Maximum working pressure: 300 psi at 70°F.
• - Maximum rated flow rate: 7,079.21 liters per minute (under specified test conditions).
• - Overall length of the fitting: 5 in.
• - Maximum outside diameter: 1 9/16 in.
• - Temperature range from -40°F to 250°F.
• - Color: Yellow for visual identification.
• - Interchange type: Thor.
• - Hose fitting gender: Male.
